Home >> Buick >> 1995 >> Century L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Antilock Brakes / Traction Control Systems >> Electronic Brake Control Module >> C2 >> Pinout Description

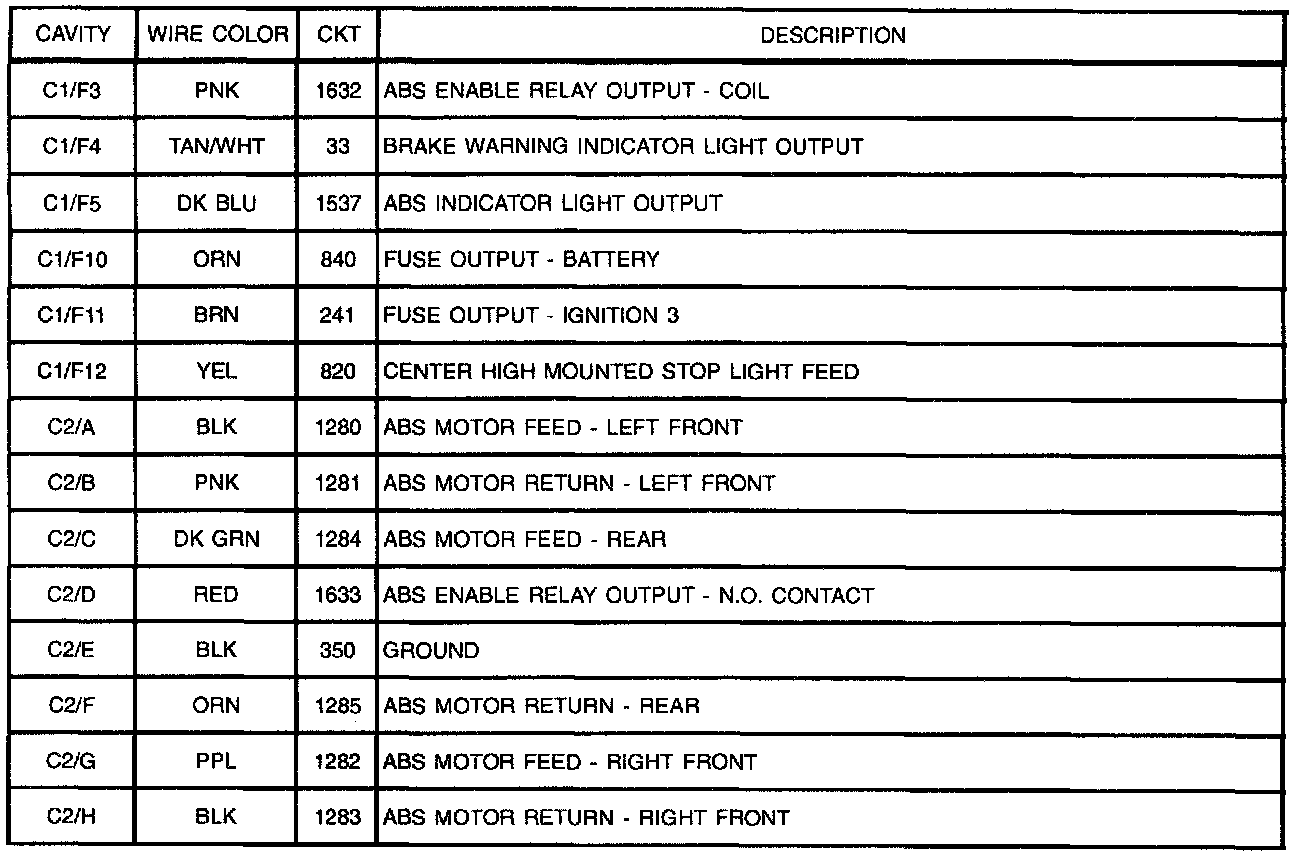

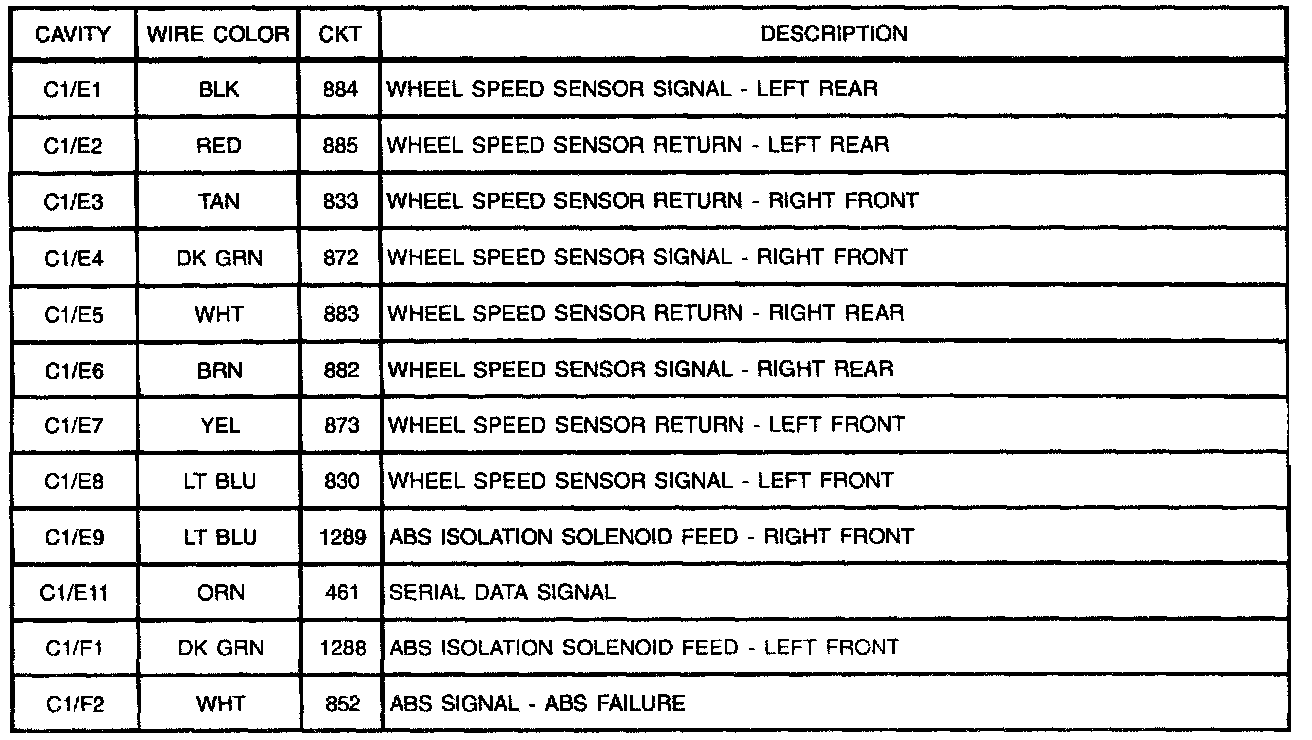

Pinout Description

Electronic Brake Control Module (EBCM):



Electronic Brake Control Module (EBCM):
