Home >> Buick >> 1995 >> Century L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module

Air Bag Control Module

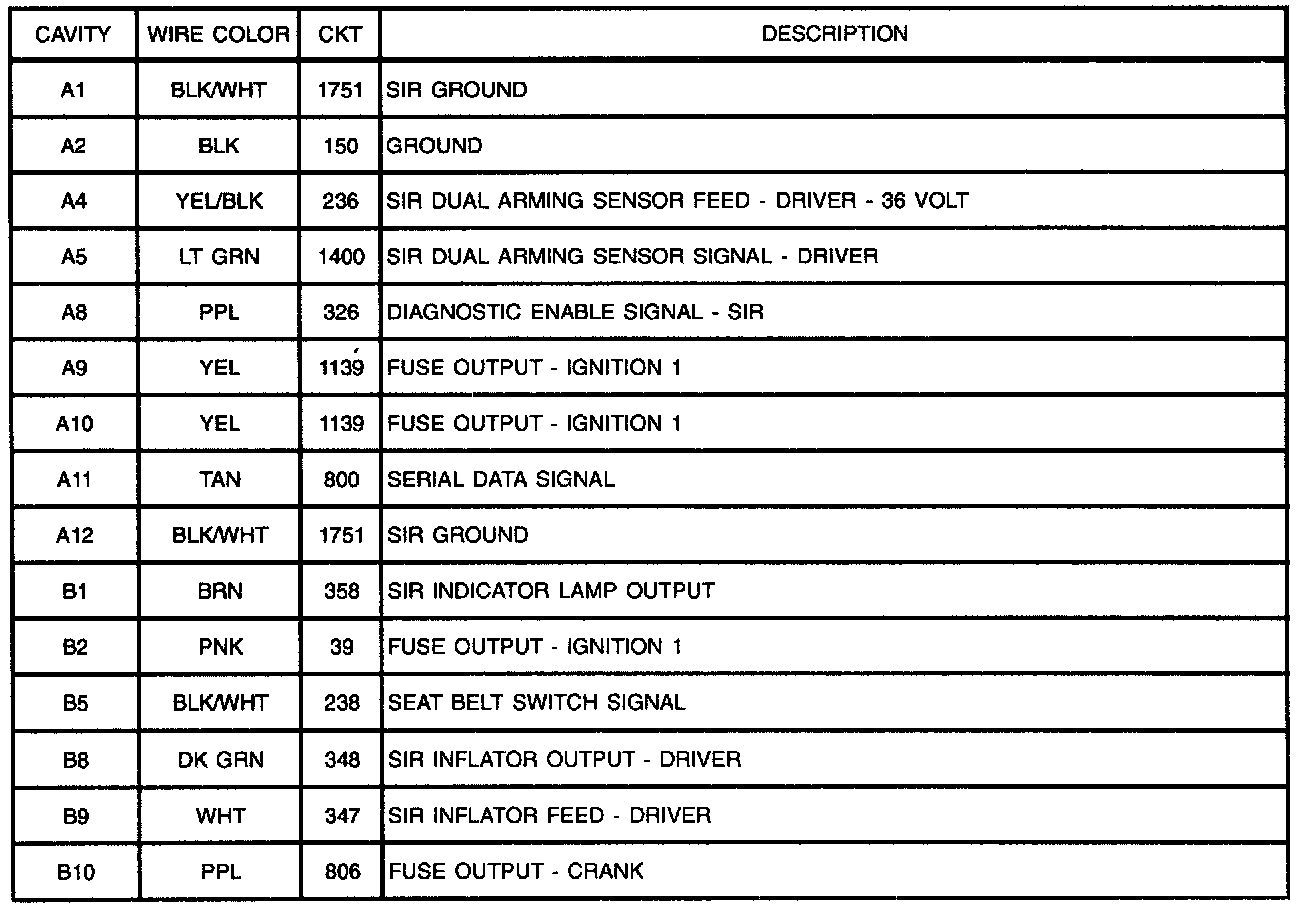

24-Way F Micro-Pack 100 Series YEL (Diagnostic Energy Reserve Module) DERM:



24-Way F Micro-Pack 100 Series YEL (Diagnostic Energy Reserve Module) DERM:
