Home >> Buick >> 1995 >> Century L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Components >> Modules >> Wiper Motor Module

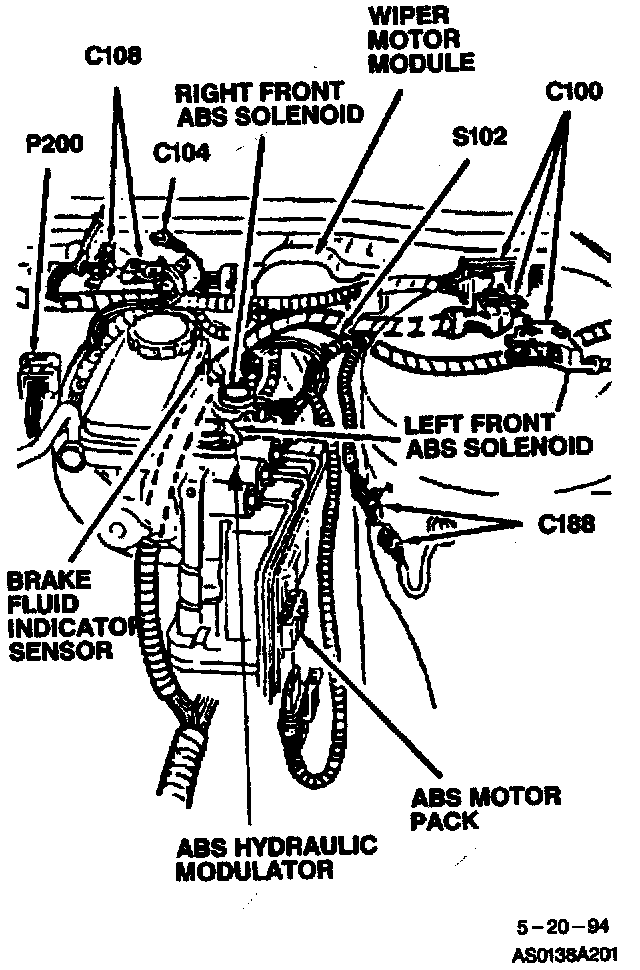

Wiper Motor Module

LH Rear Of Engine Compartment:
