LEMON Manuals
: Even more car manuals for everyone
Home
>>
Buick
>>
1993
>>
Regal V6-191 3.1L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Switch
Power Window Switch

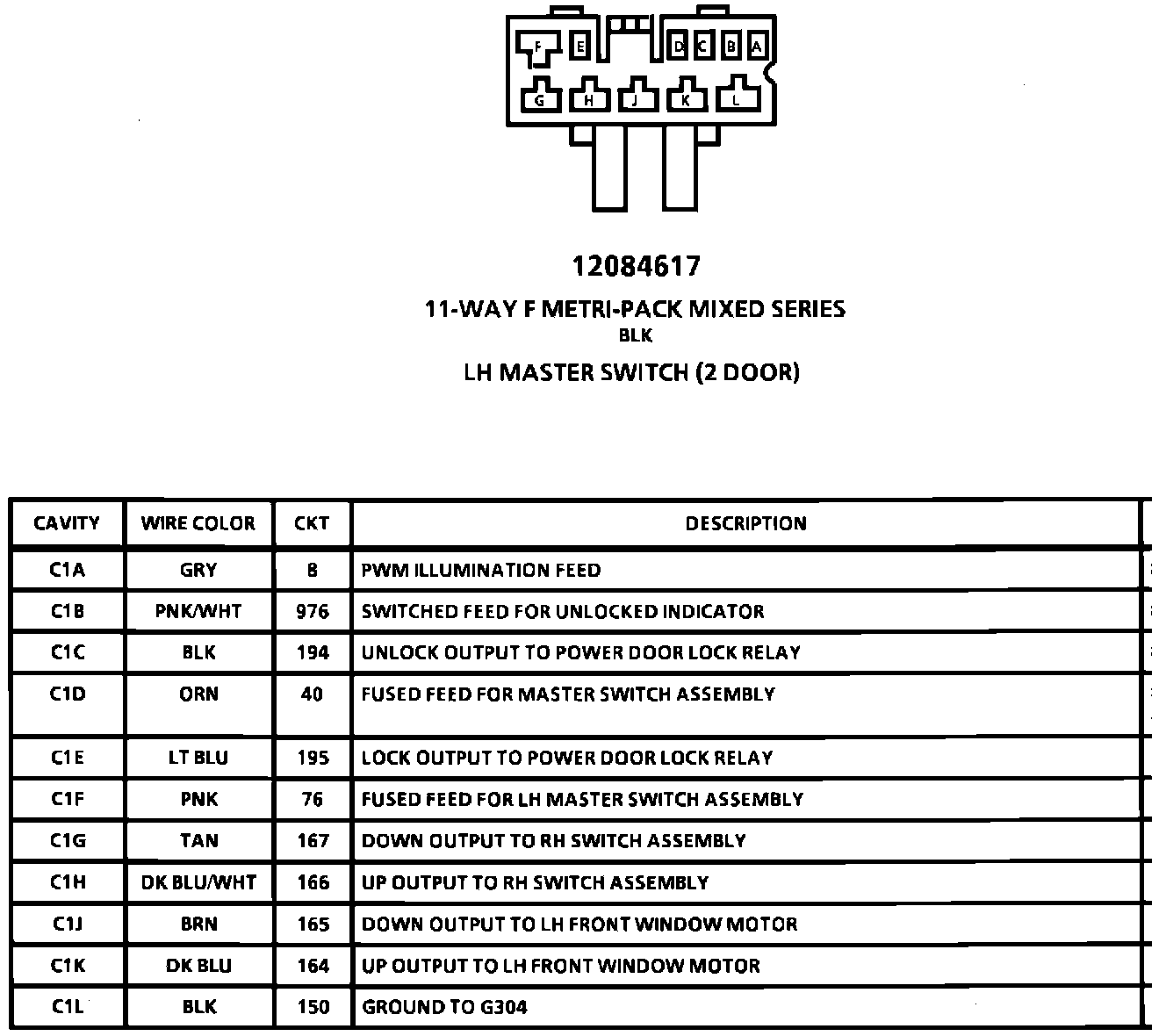

LH Master Switch (2 Door) Connector:
RH Power Window (2 Door) Connector:
LH Master Switch, RH Power Window Switch:
Rear Window Switch Connector:
