Power Window Control Module: Diagrams

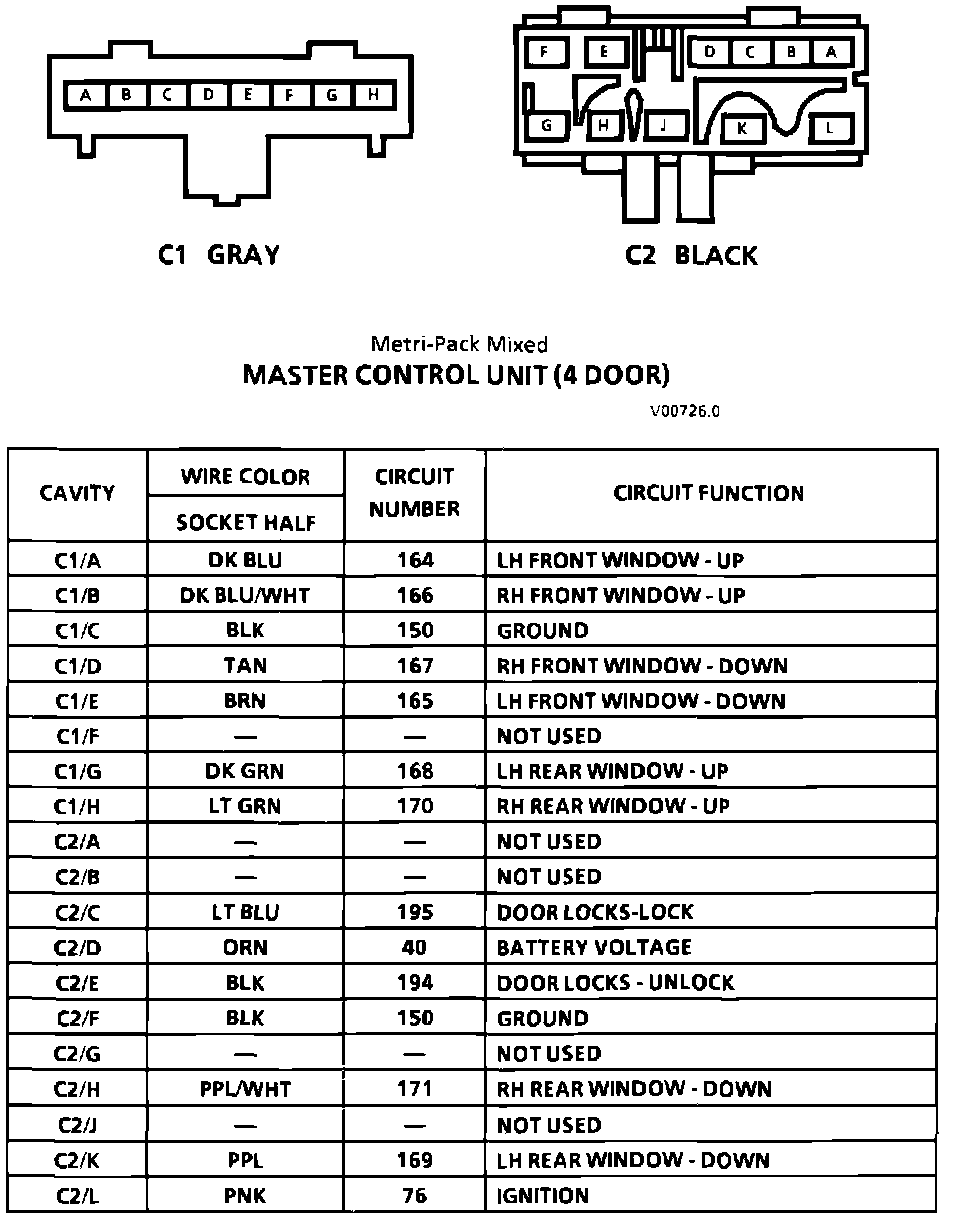

Master Control Unit Connector:
Power Window Control Module Connector:
Master Control Unit Connector:
RH Control Unit Connector:
