Home >> Buick >> 1993 >> Century L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Relay Box

Relay Box

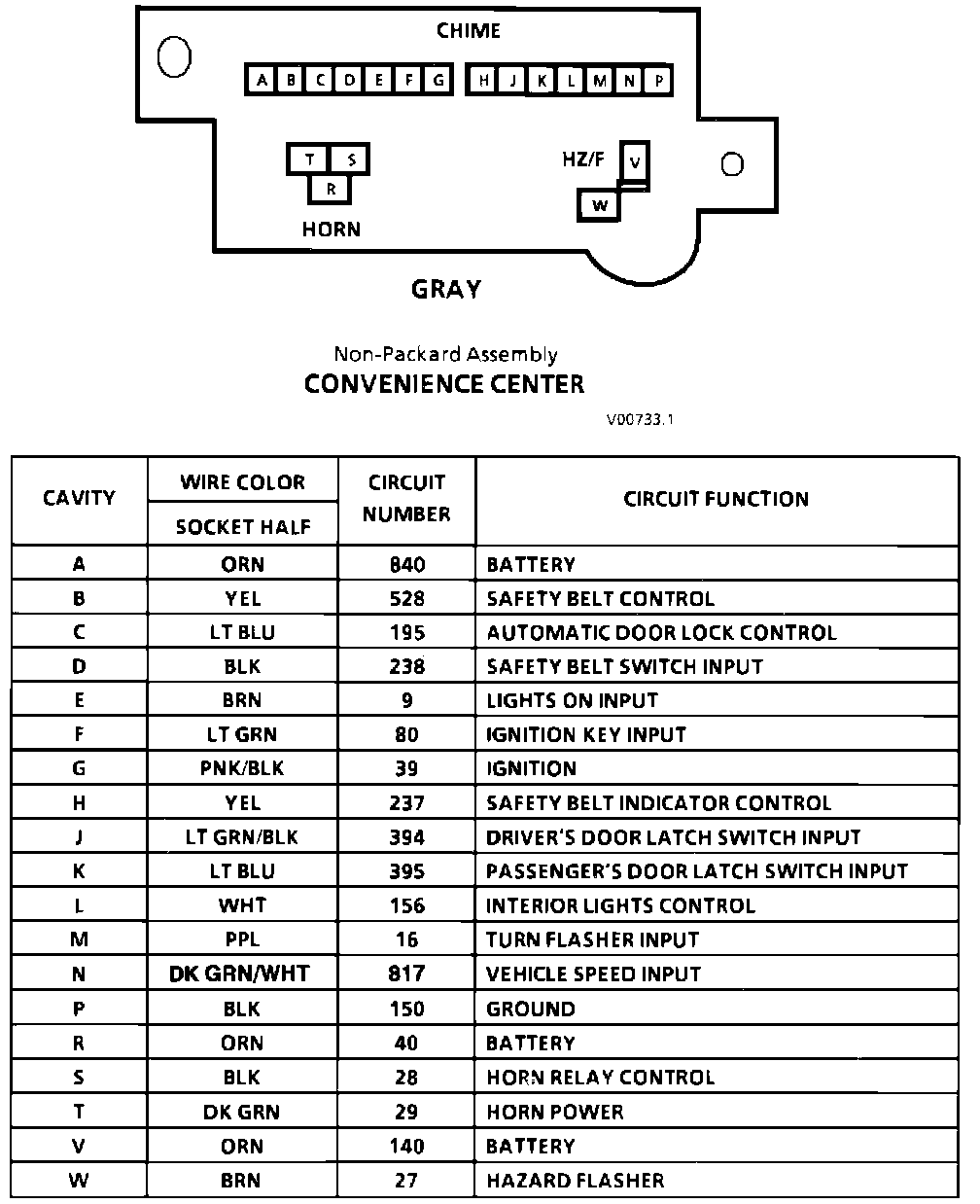

Convenience Center Connector:
