Home >> Buick >> 1993 >> Century L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> Connector C1

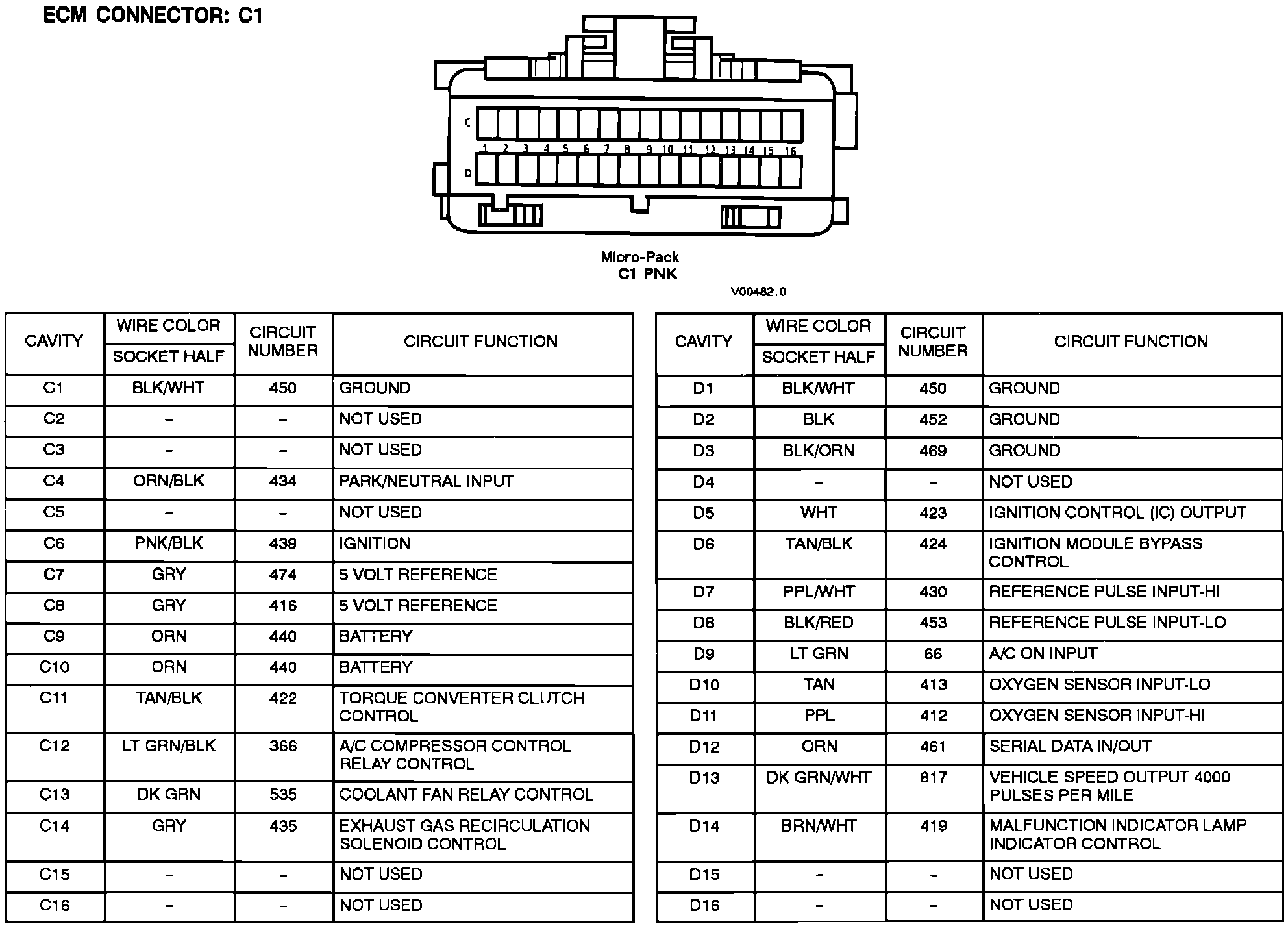

Connector C1

Connector Identification:
