Home >> Buick >> 1993 >> Century L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Daytime Running Lamp Control Unit

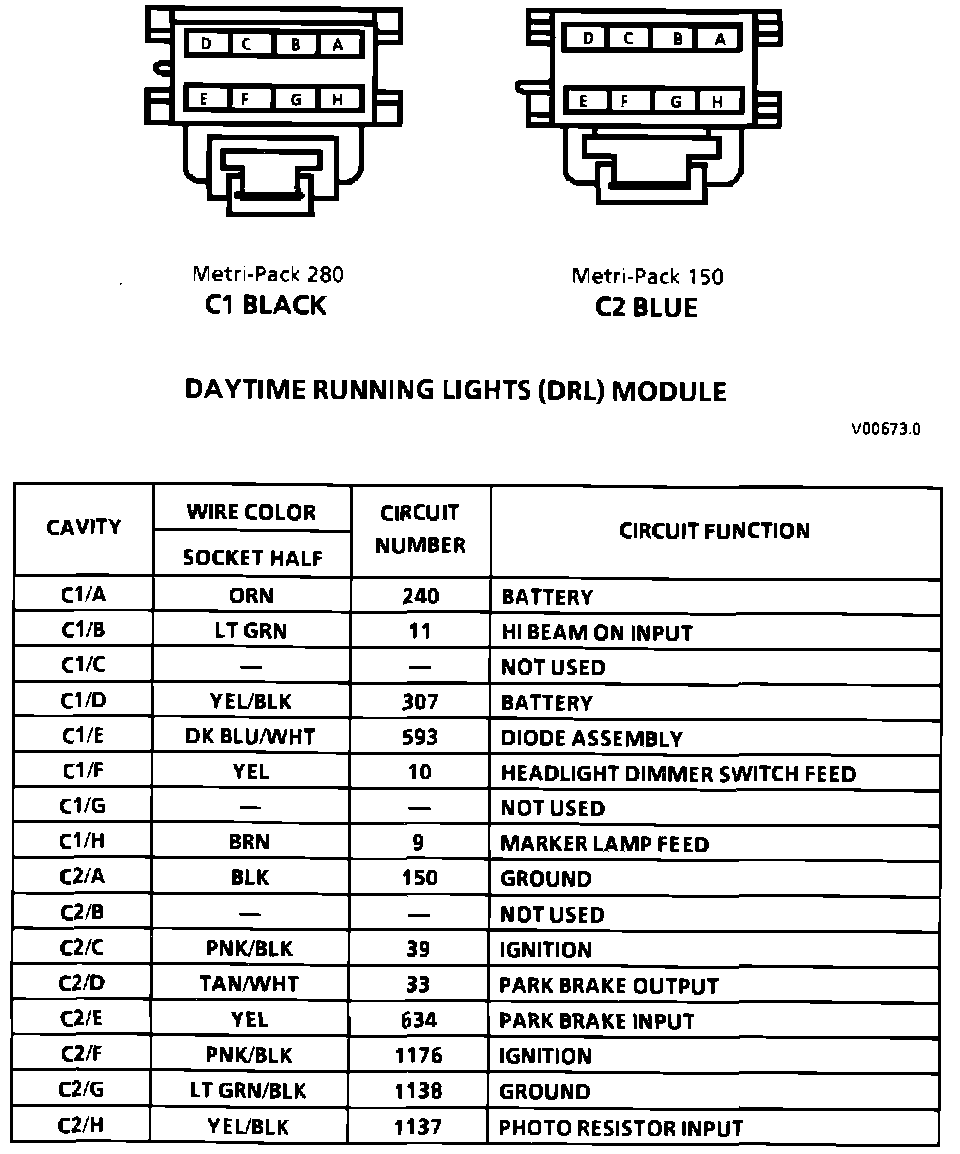

Daytime Running Lamp Control Unit

Daytime Running Lights Module Connector:
