Buick
>>
1992
>>
Roadmaster V8-350 5.7L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Locations
>>
Solenoid Module
Solenoid Module

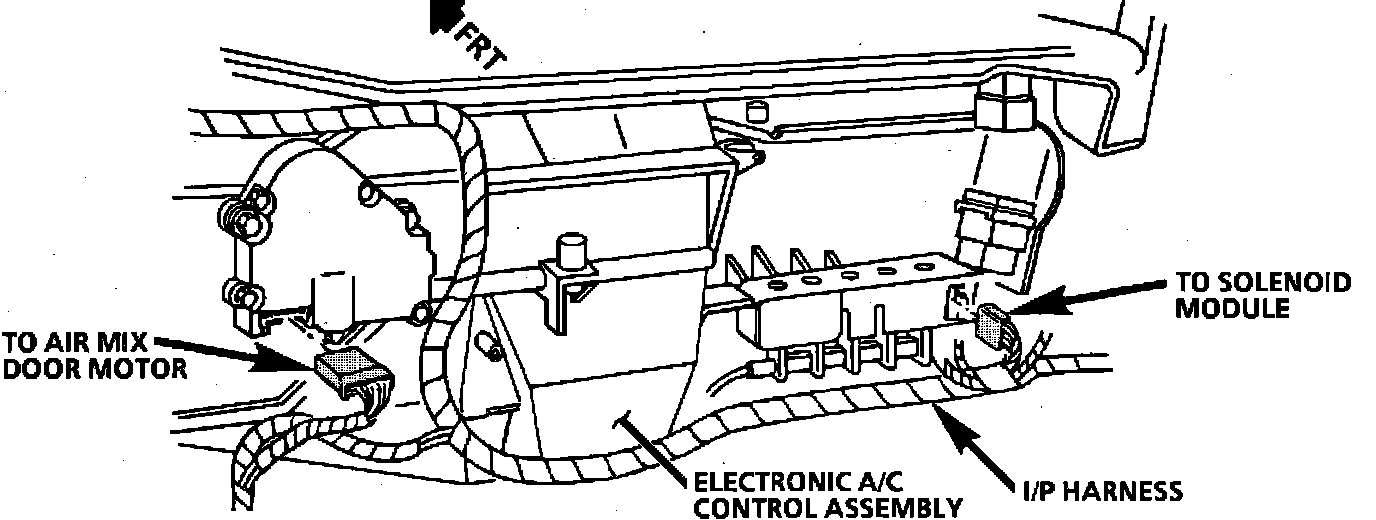

Component Location View. Rear View of Center Instrument Panel (w/Electronic A/C):
Lower RH I/P, below Blower Motor
