Rear Window Run Channel Retainer: Installation

  1. Install rear window run channel retainer.
  2. Ensure that moveable glass is engaged in rear window division channel and install rear window run channel retainer upper screw.
  3. Install rear window run channel retainer lower screw.
  4. Install water deflector. See WATER DEFLECTOR  .
  5. Install door trim panel. See DOOR TRIM PANEL  .


  1. Install rear window run channel retainer (172) with insulator (174). Install screw (123). SeeFig 1 .
  2. Install retainer (173) and reposition water deflector.
  3. Install door trim panel. See DOOR TRIM PANEL  .

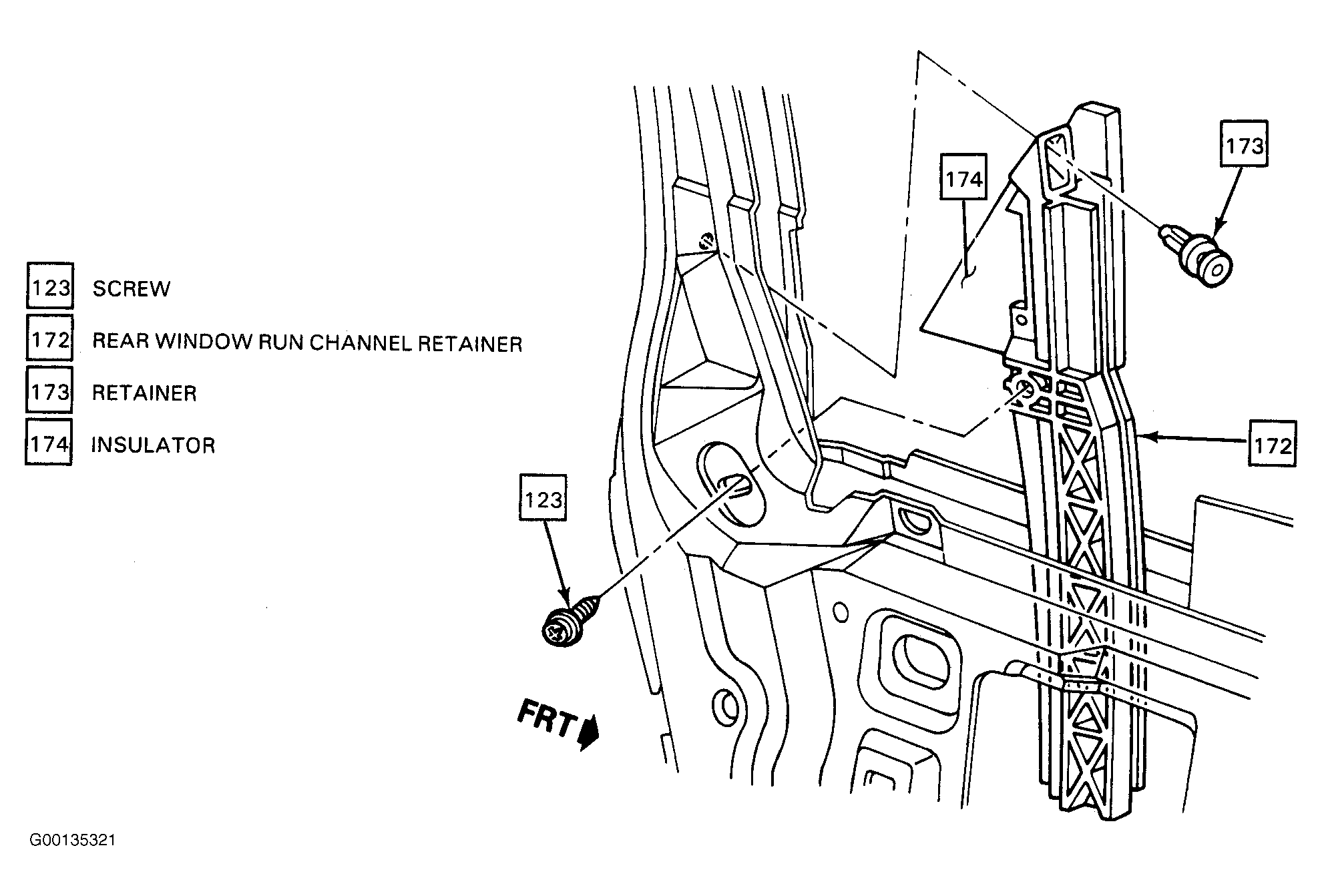

Fig 1: Removing & Installing Rear Window Run Channel Retainer (Wagon)
G00135321Courtesy of GENERAL MOTORS CORP.
