Keyless Entry Module
Keyless Entry Module
Keyless Entry Module/LH And RH Rear Window Switch:

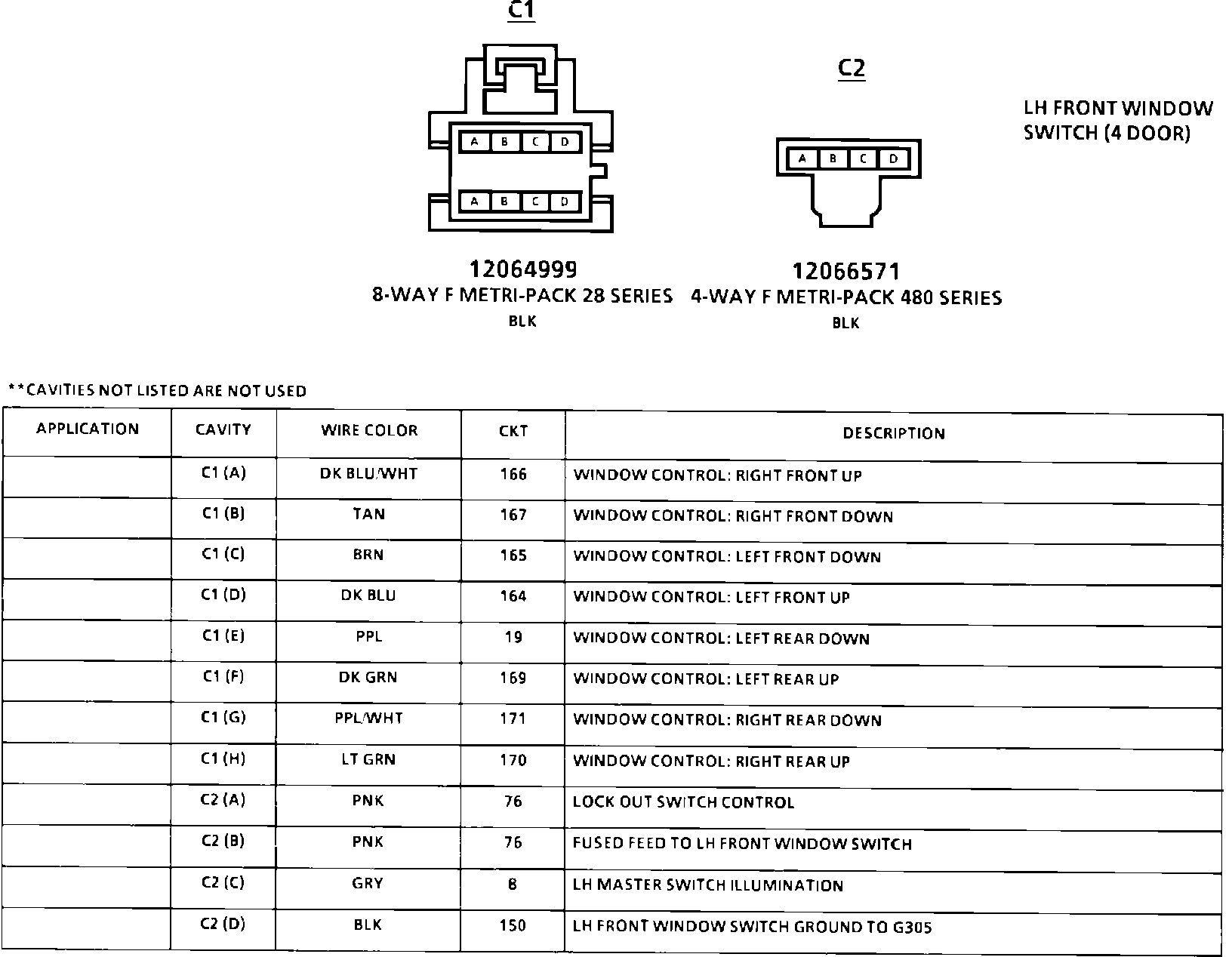

LH Front Window Switch (4 Door) Connector Face:
LH And RH Switch Assembly (2 Door) Connector Face:
