System Specifications

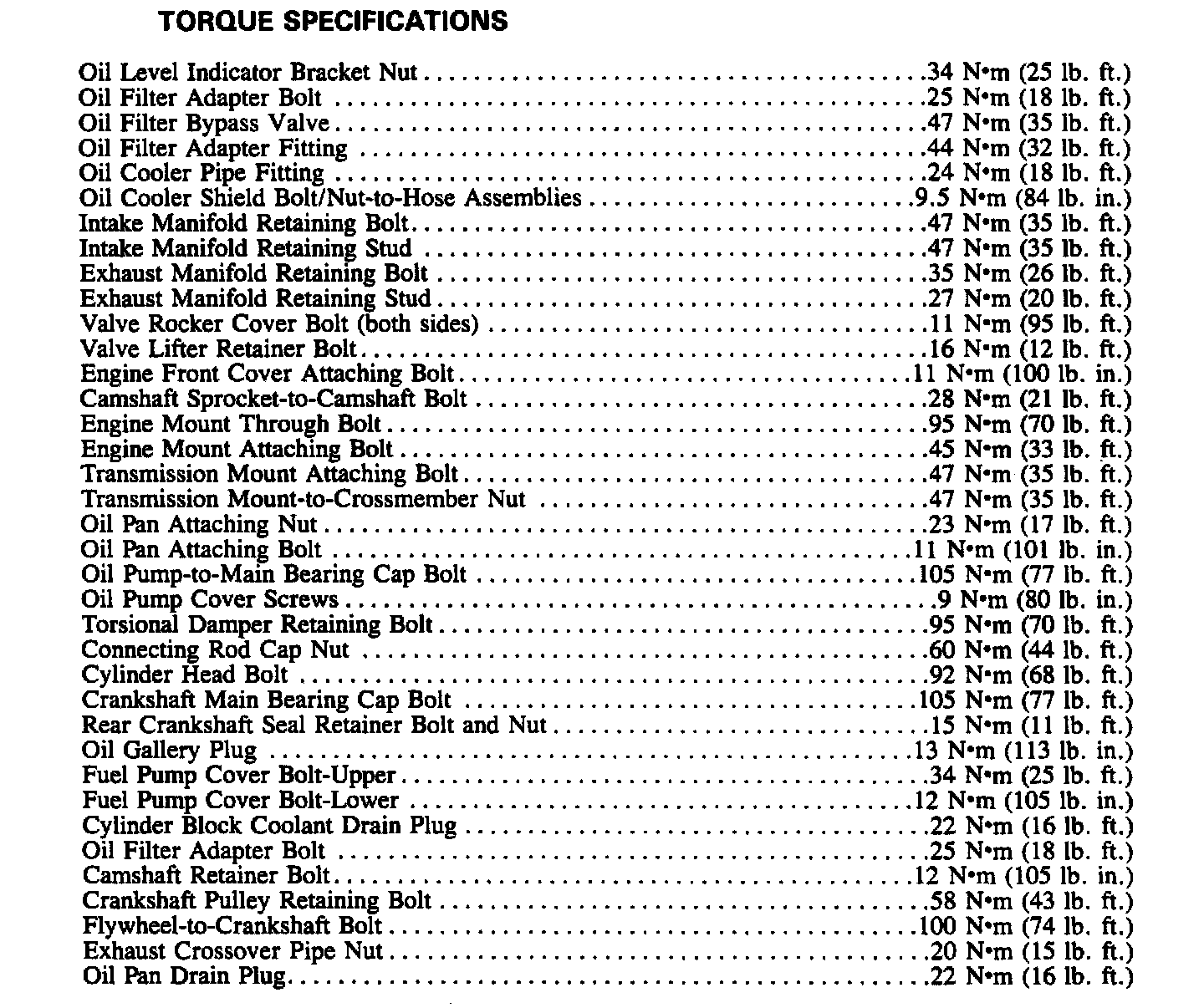

Torque Specifications:

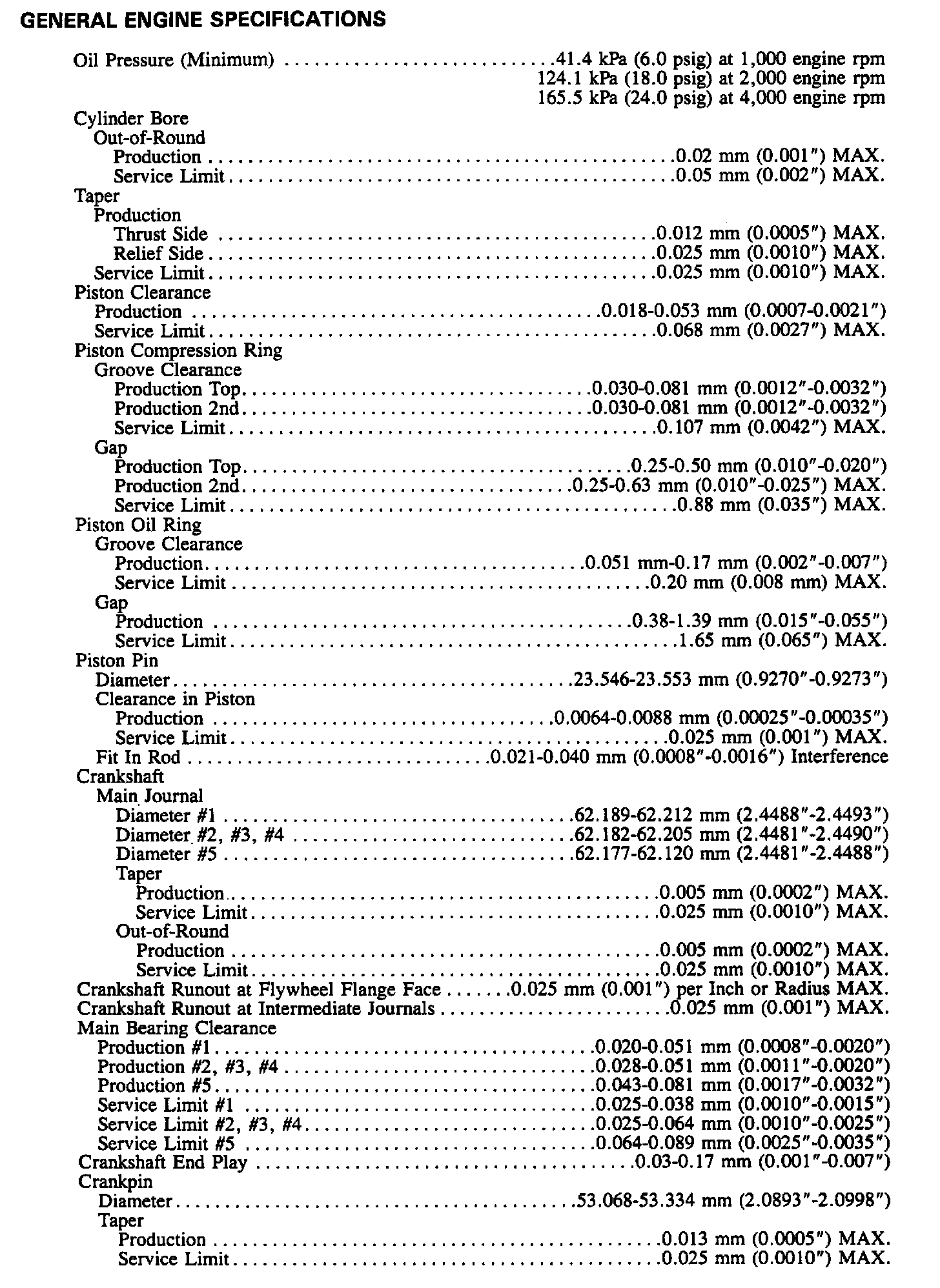

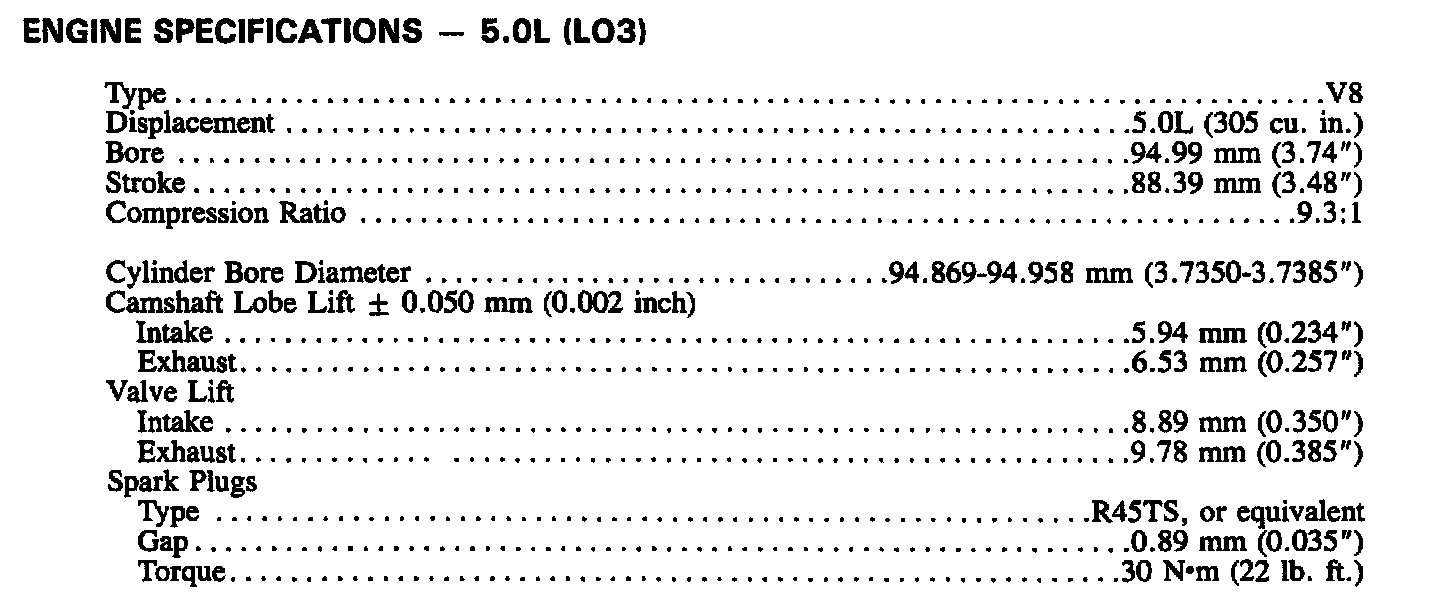

Engine Specifications:

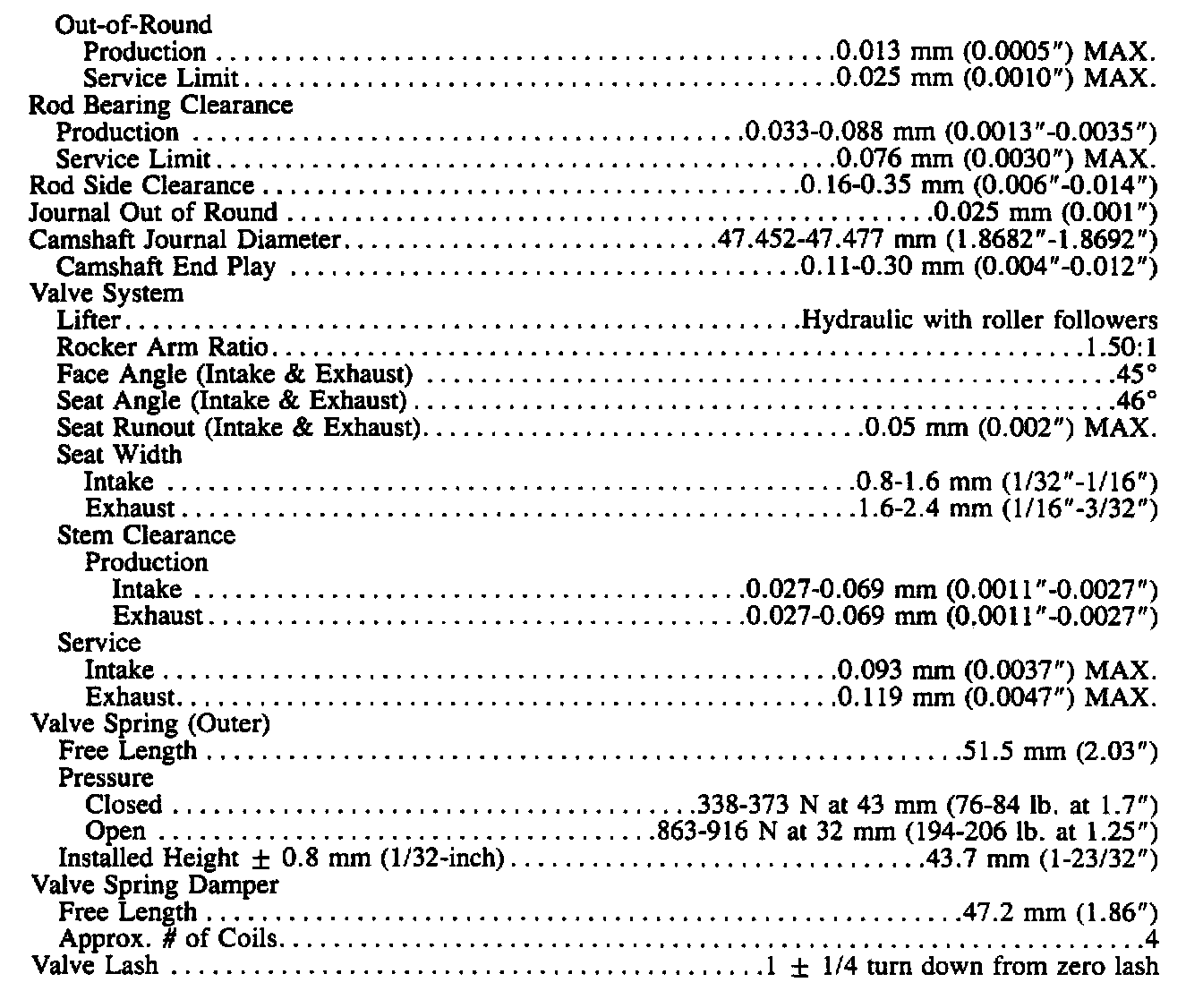

Continued Engine Specifications:




Continued Engine Specifications:






Intake Manifold Sequence:





Cylinder Head Sequence:
