Home >> Buick >> 1991 >> Regal V6-191 3.1L >> Repair and Diagnosis >> Diagrams >> Components >> Miscellaneous Components >> Cruise Control Servo

Cruise Control Servo

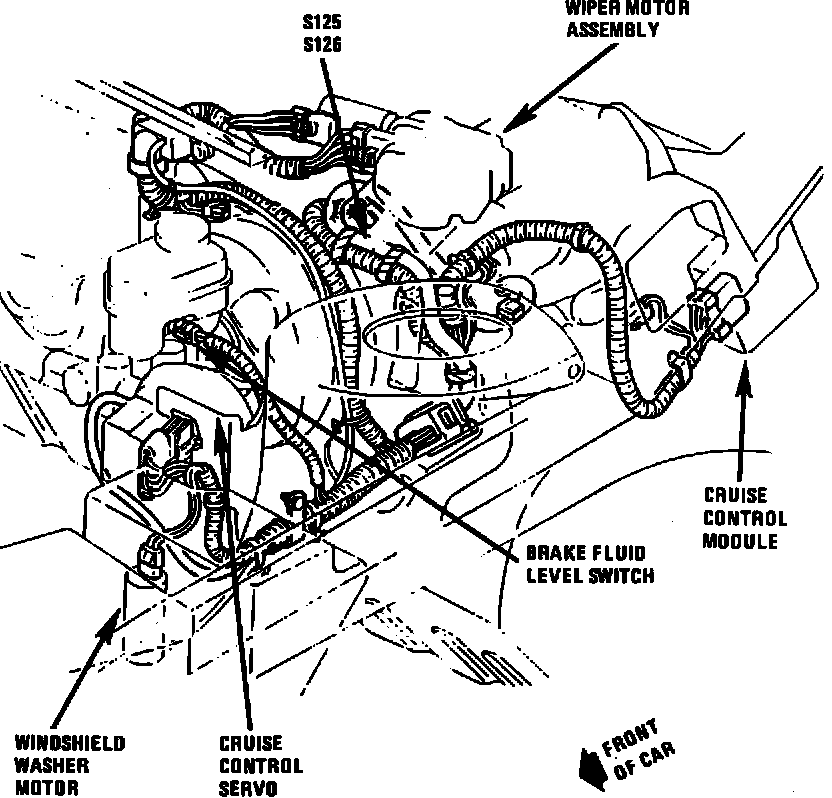

LH Side Of Engine Compartment:

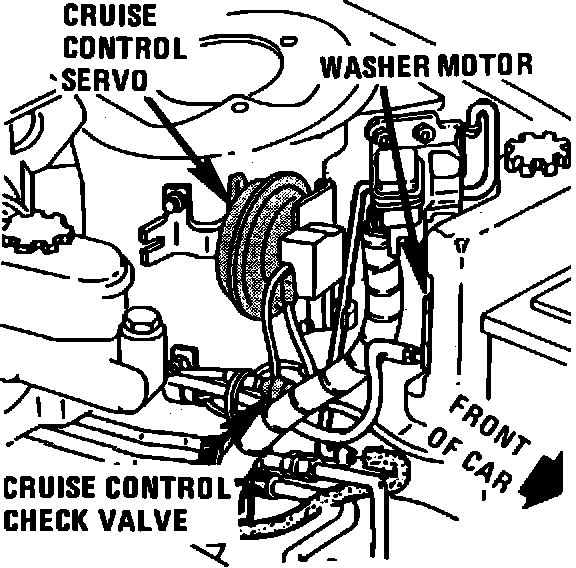

LH Rear Of Engine Compartment.:






LH Side Of Engine Compartment, Ahead Of Strut Tower
