Exterior Lighting Module: Locations

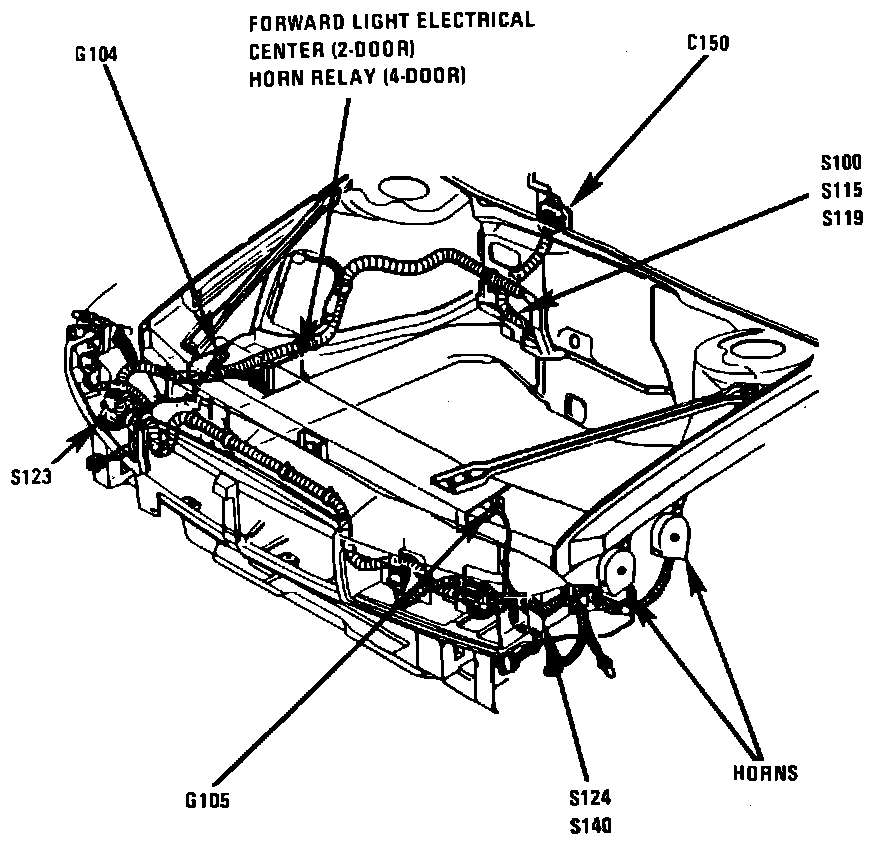

Forward Light Electrical Center.:




RH Front Of Engine Compartment

Applicable to: 1990 Regal
