Cylinder Head Assembly

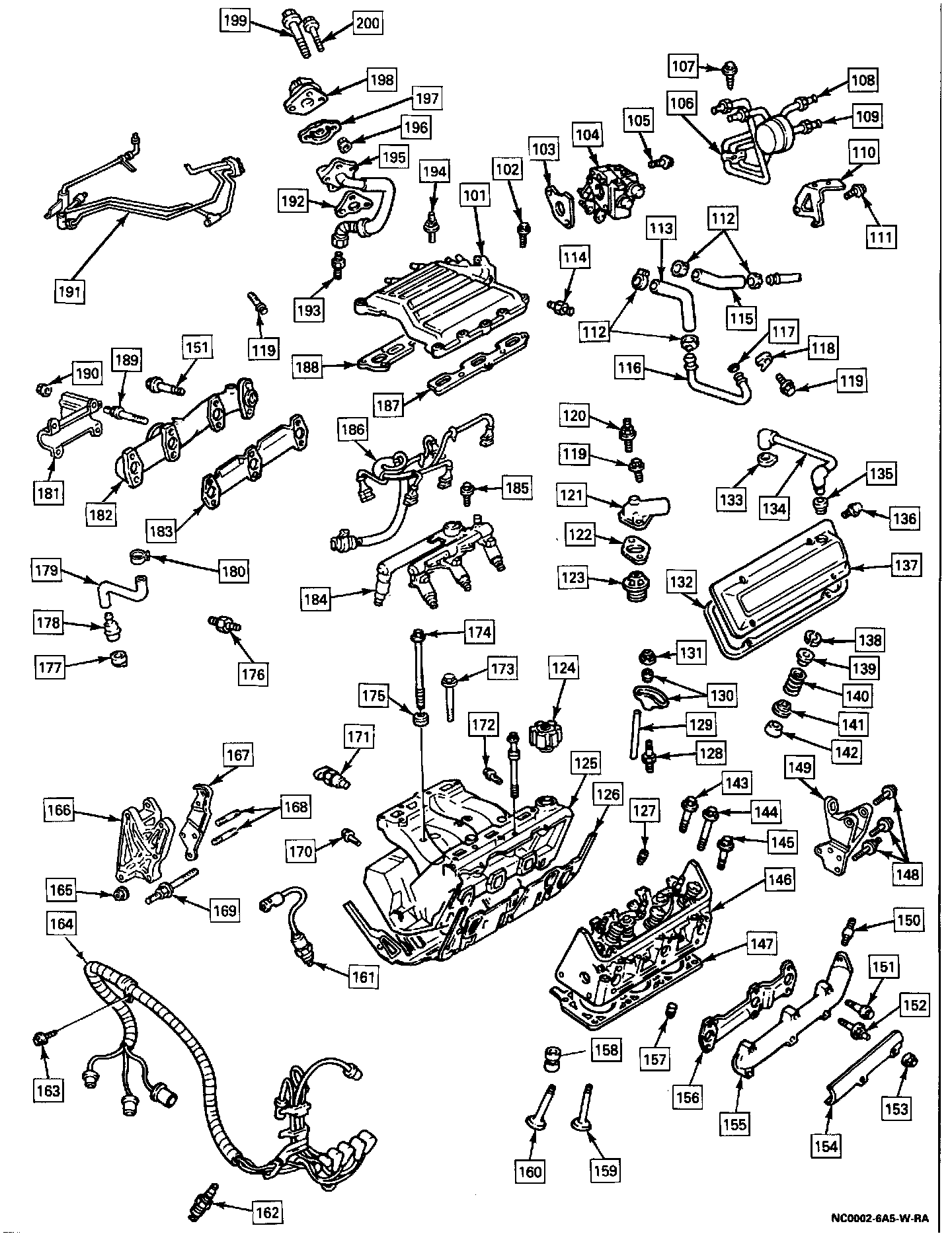

Cylinder Head Assembly:

Cylinder Head Assembly

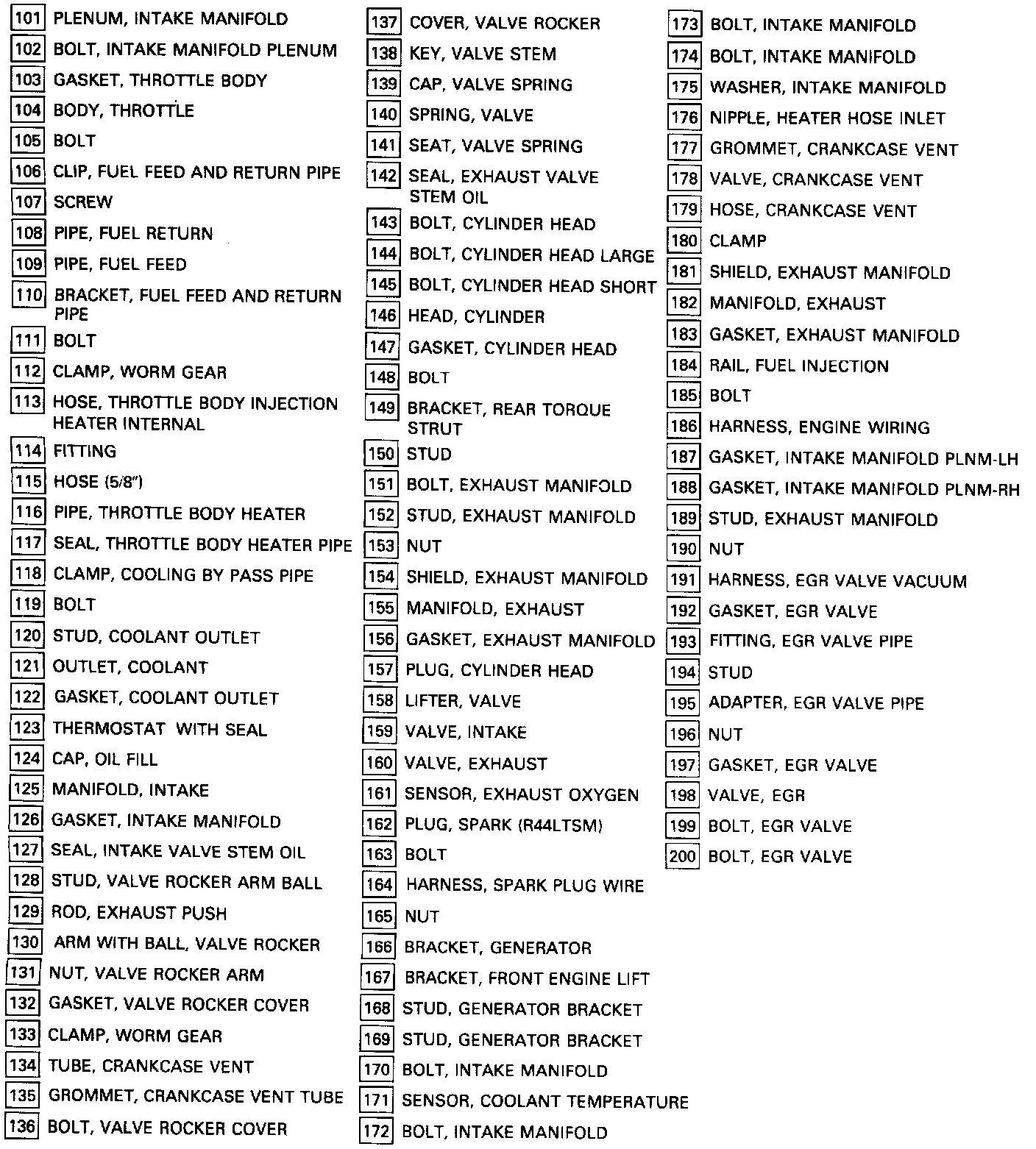

Cylinder Head Assembly ( Legend ):

Cylinder Head Assembly, Legend
