A/C Compressor Relays

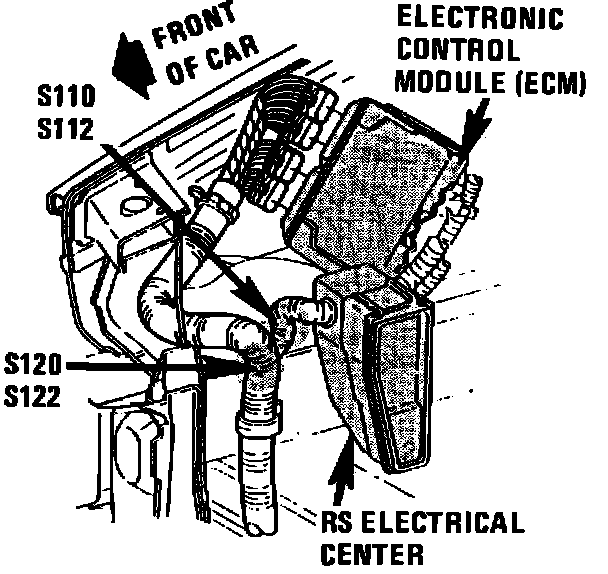

RH Front Of Engine Compartment:

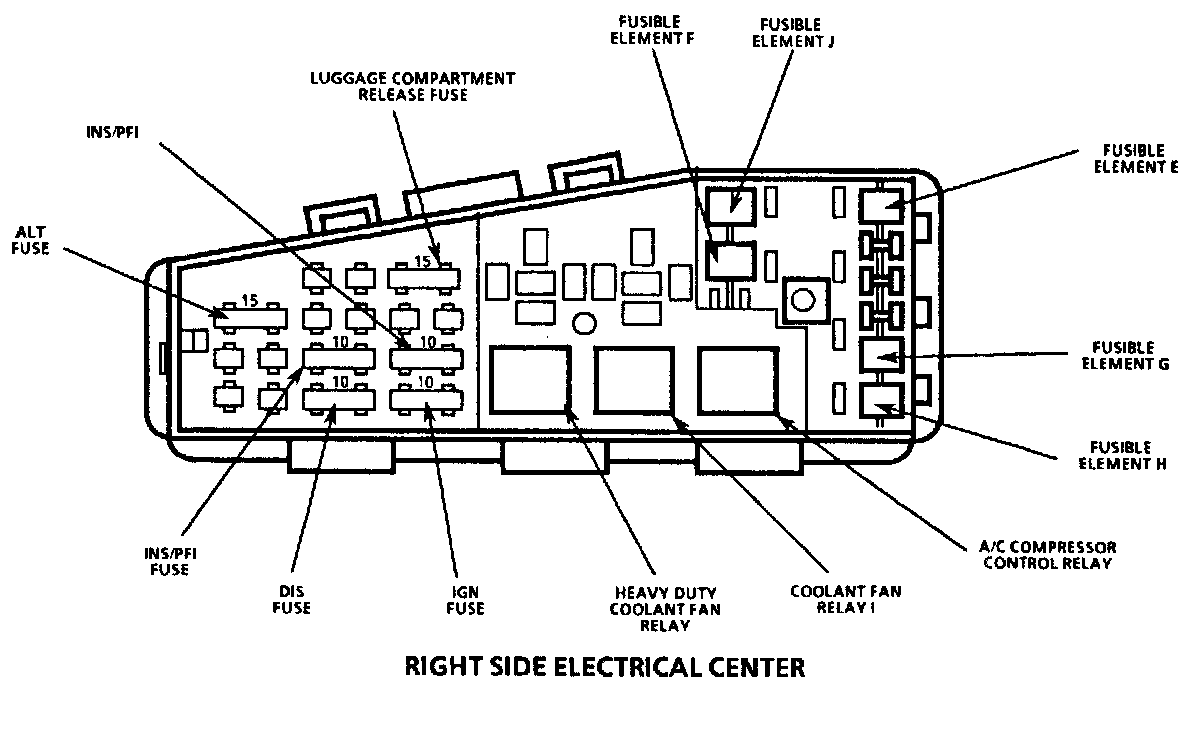

Right Side Electrical Center:
The A/C compressor relay is located in the RS Electrical Center.
