System Specifications

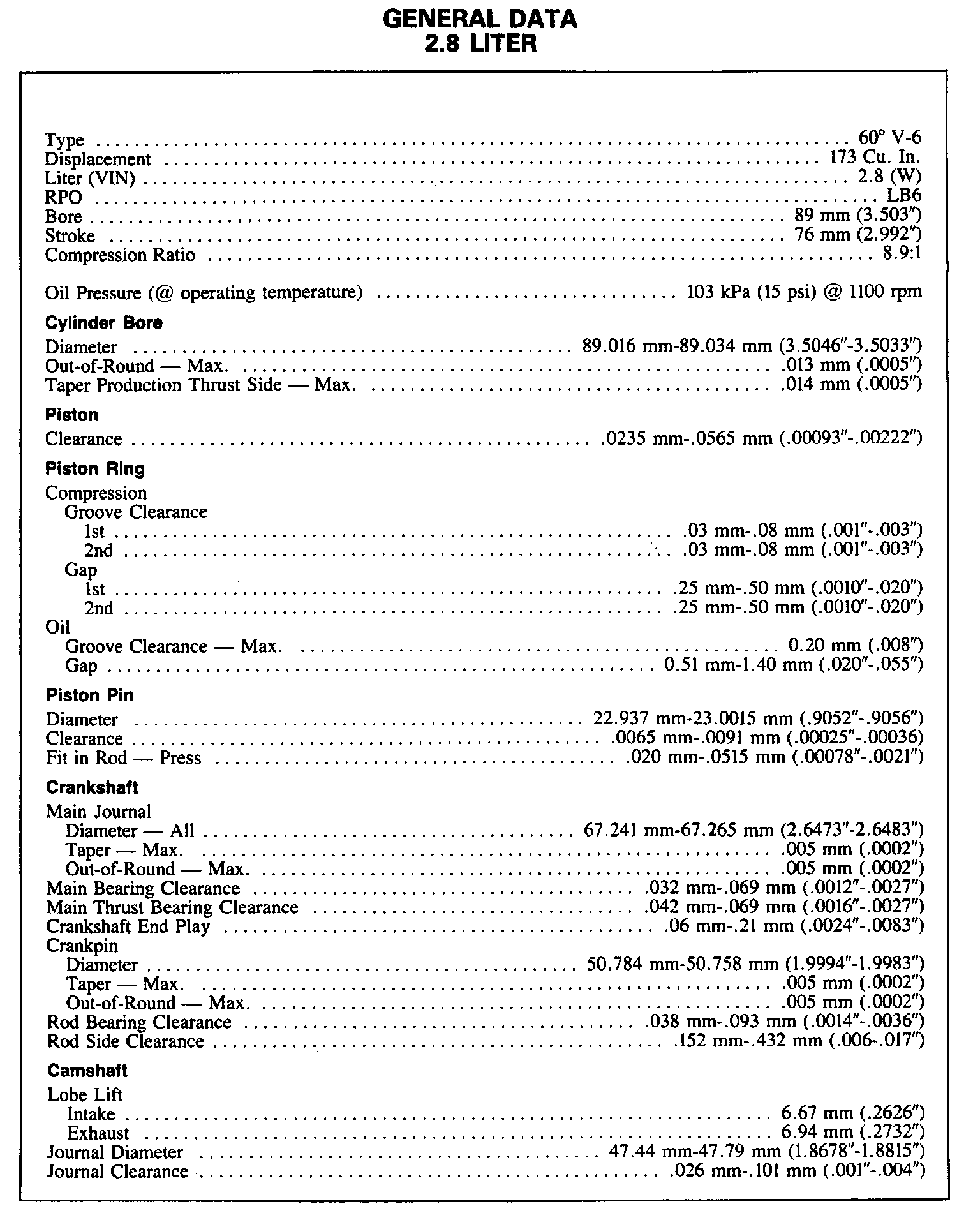

Engine Specifications 2.8L:

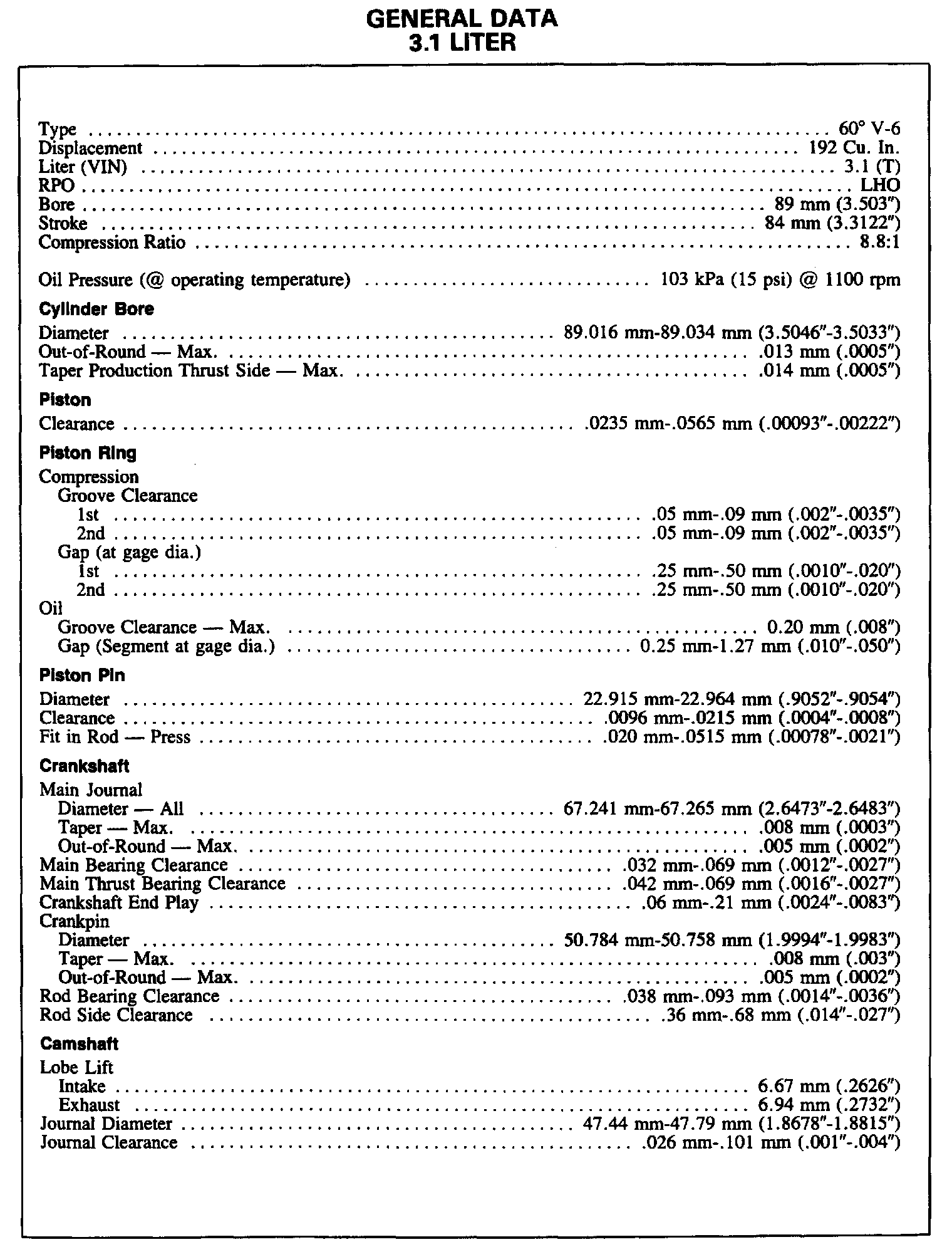

Engine Specifications 3.1L:

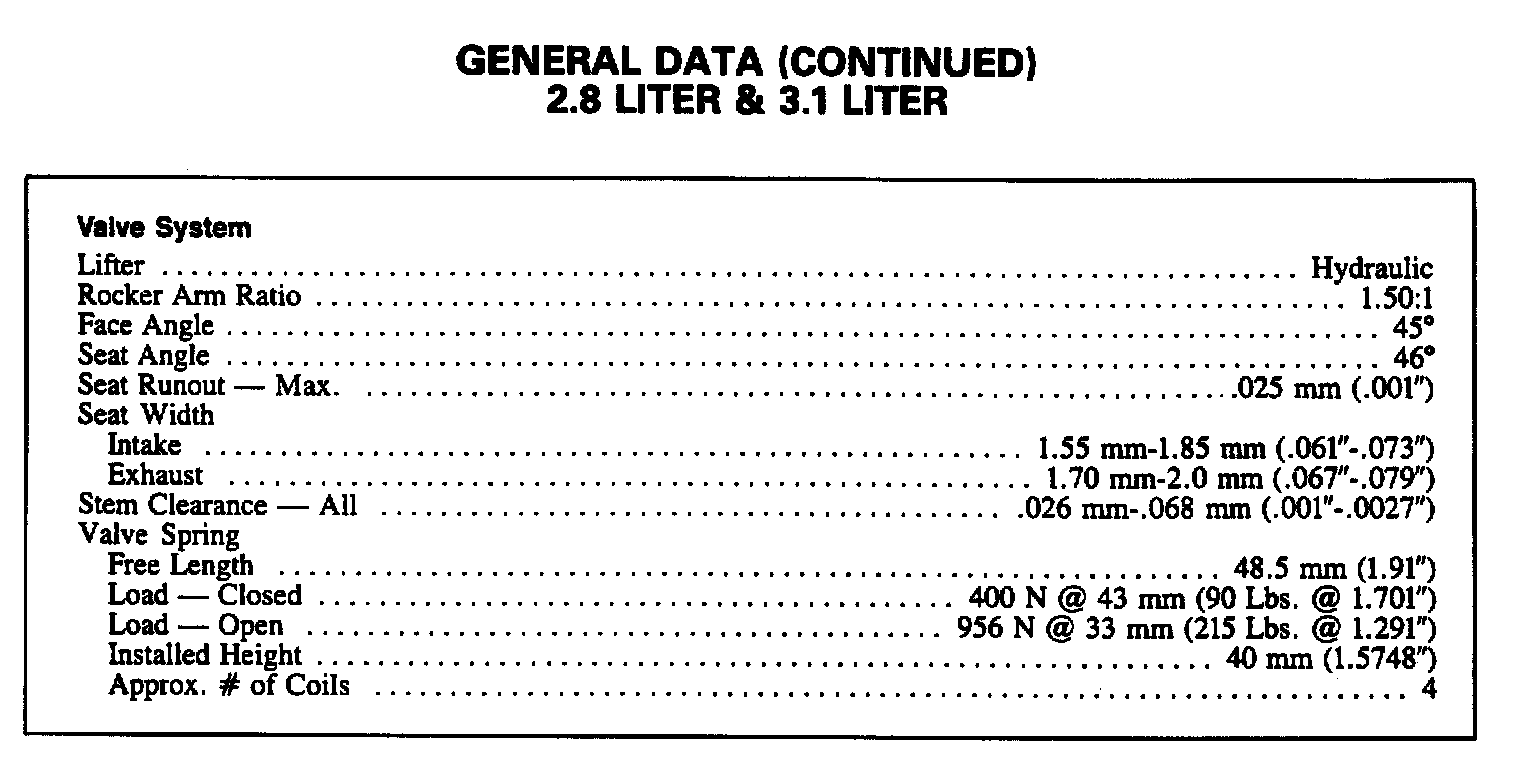

Continued Engine Specifications 2.8L/3.1L:

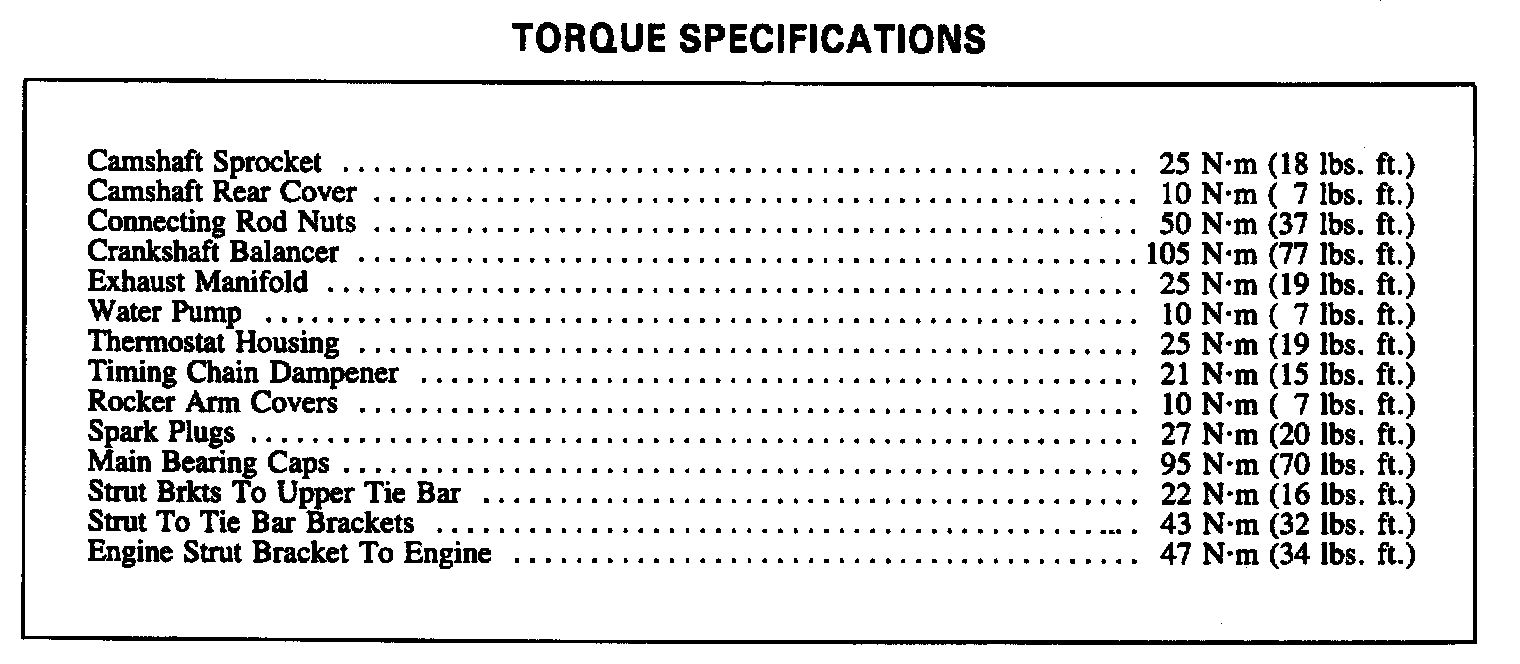

Torque Specifications:






Intake Manifold Sequence:

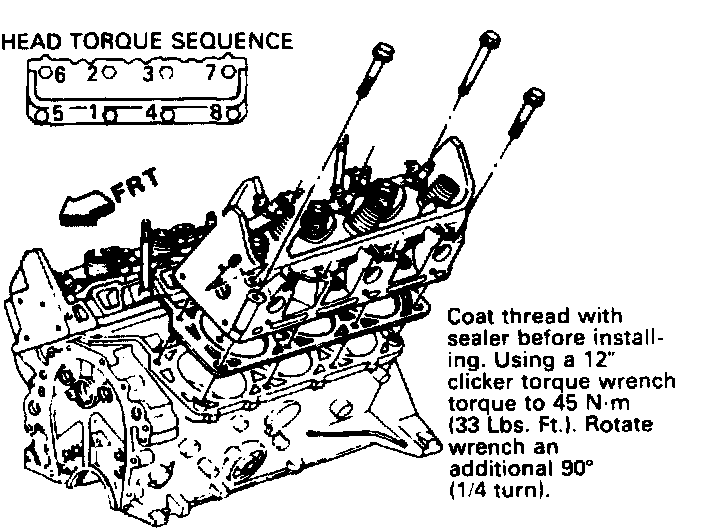

Cylinder Head Sequence:
