Home >> Buick >> 1988 >> Regal V6-173 2.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> Part 2 of 2

Part 2 of 2

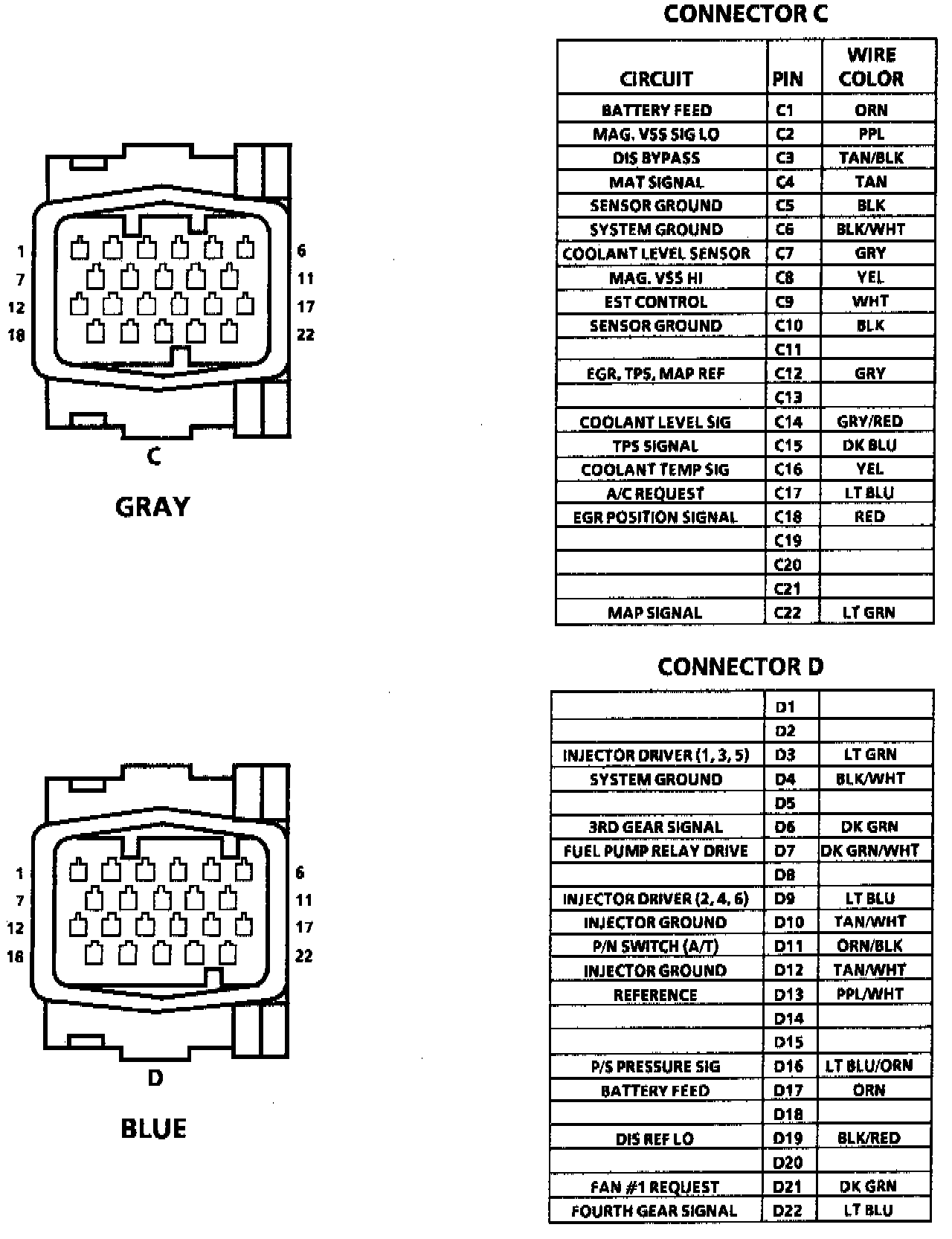

ECM Connector View (2of2):
