Home >> Buick >> 1988 >> Century V6-231 3.8L >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Ignition Control Module >> Diagrams >> Diagram Information and Instructions >> Symbol Identification

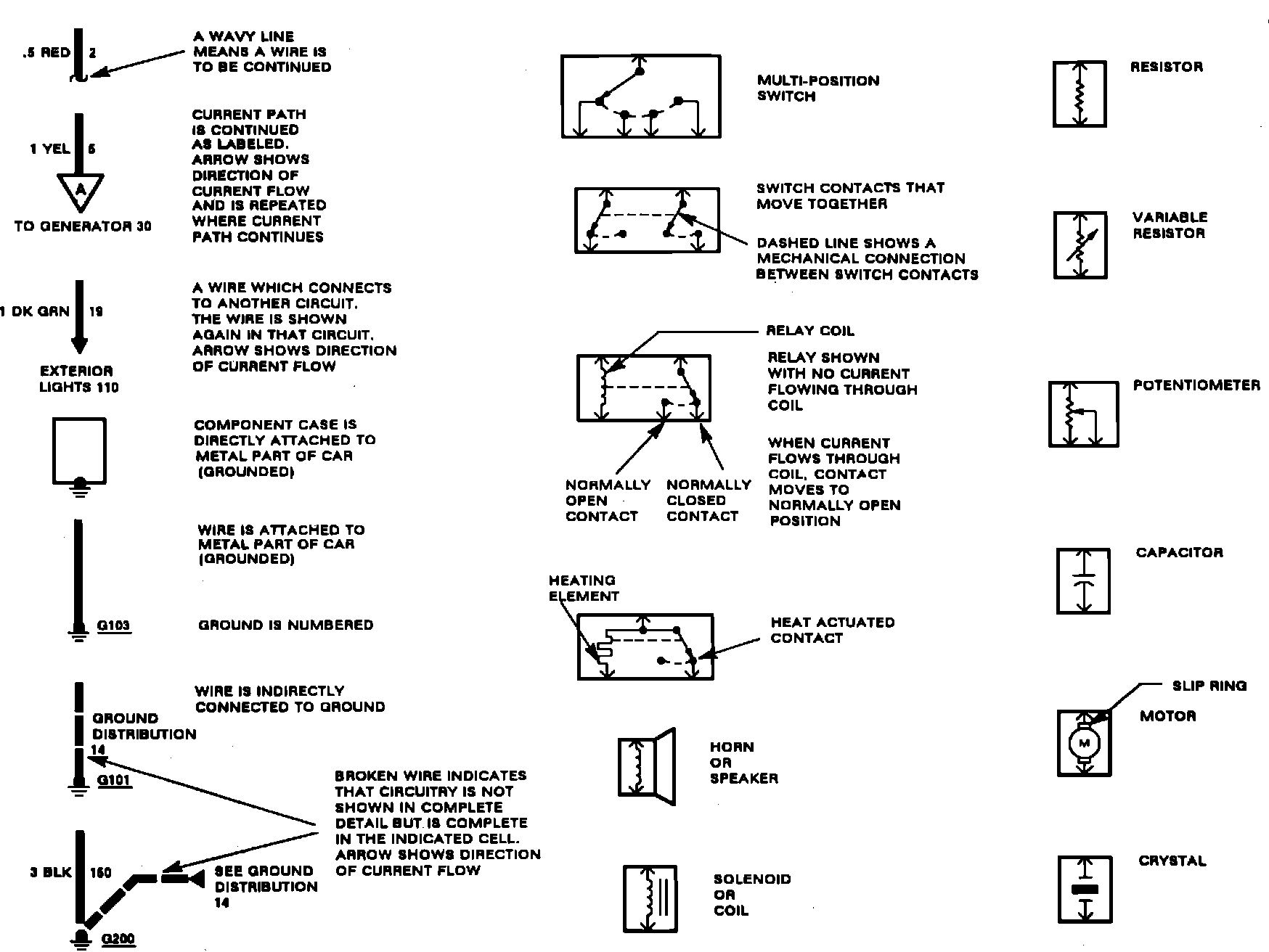

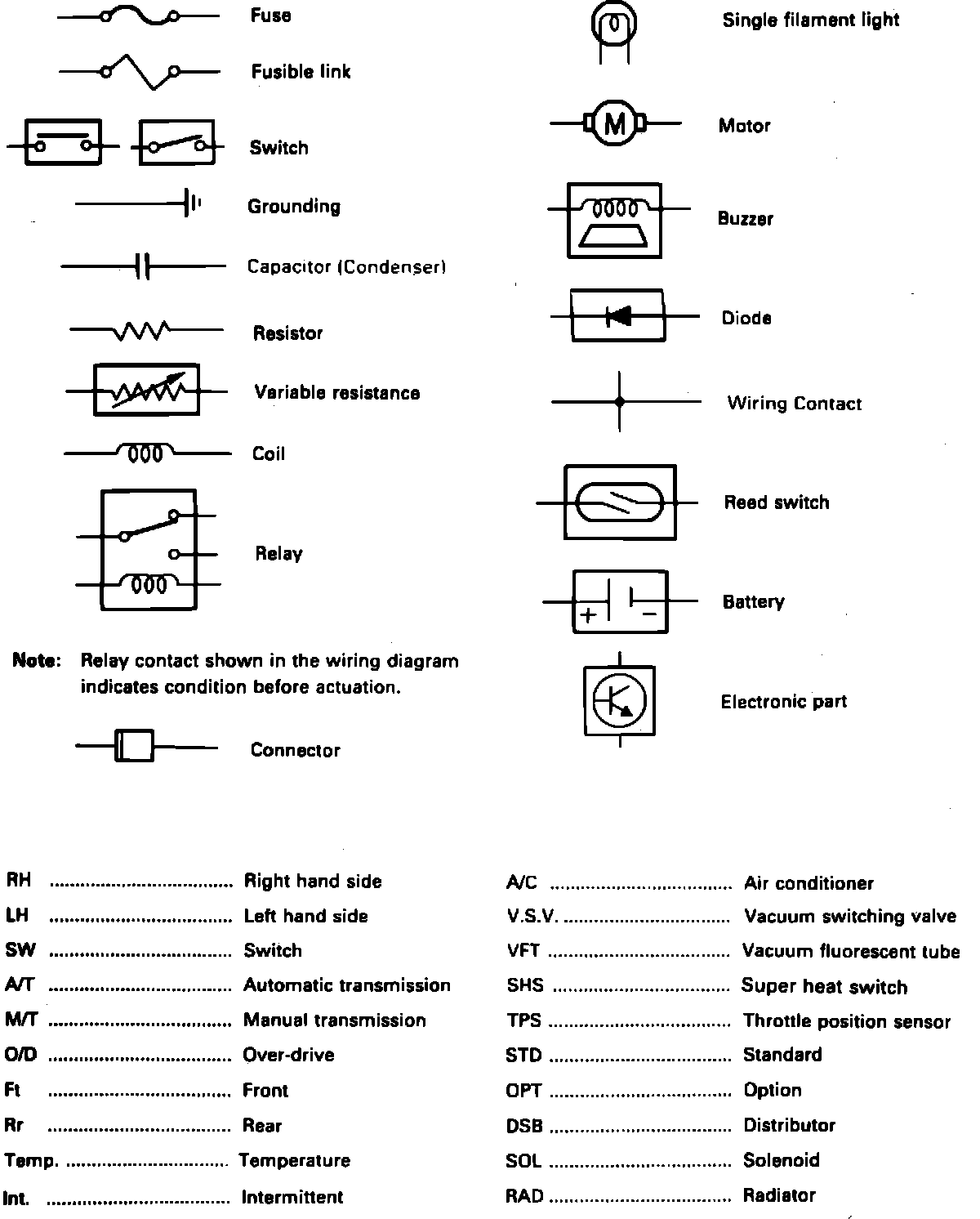

Symbol Identification

Symbol Identification:

Symbol Indentification:
