With Speed Density Update
With Speed Density Update
ECM Connector View (1of2):

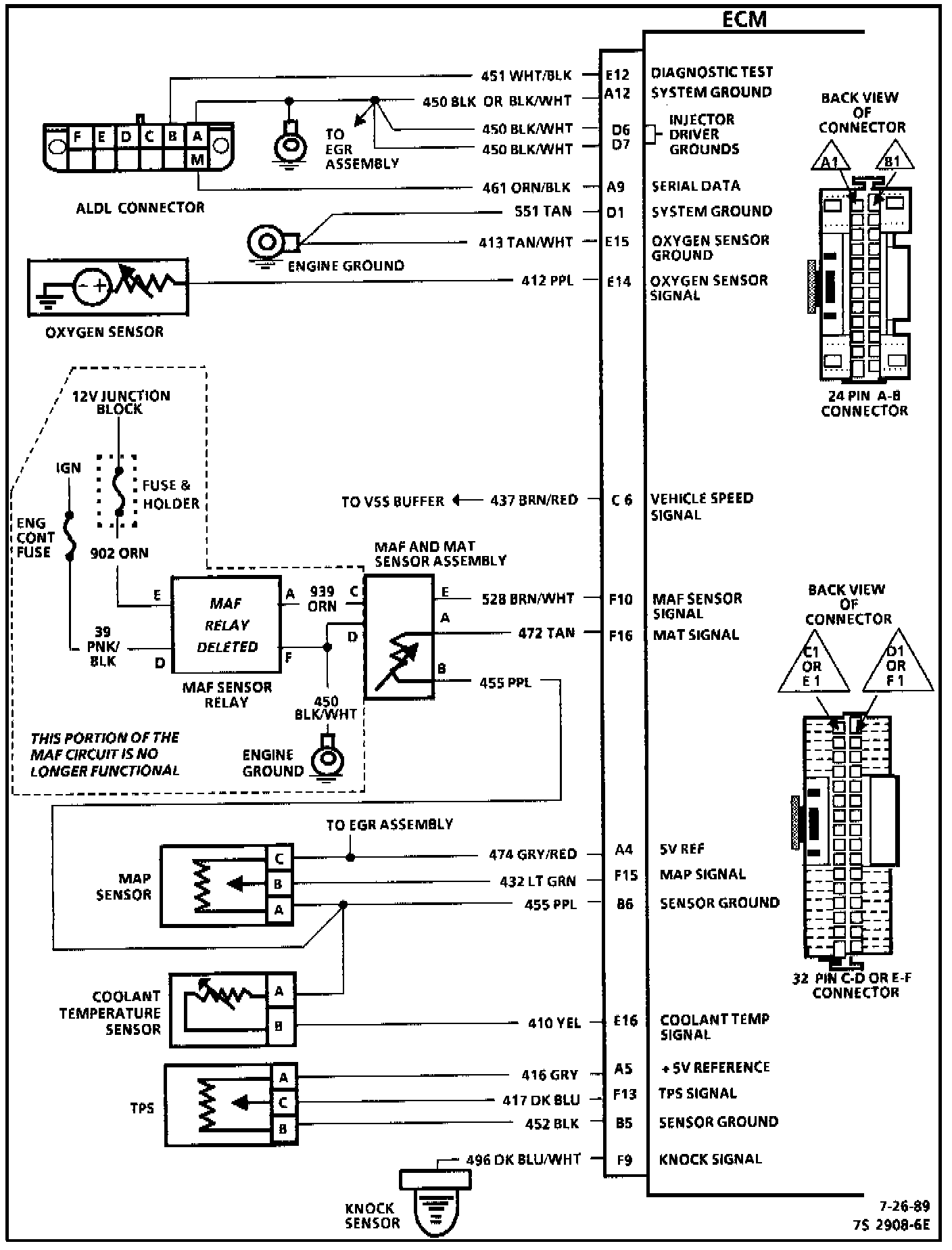

ECM Wiring Diagram With Speed Density Update:
ECM Wiring Diagram (3 Of 3):
