Home >> Buick >> 1987 >> LeSabre V6-231 3.8L >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Module HVAC >> Locations

Control Module HVAC: Locations

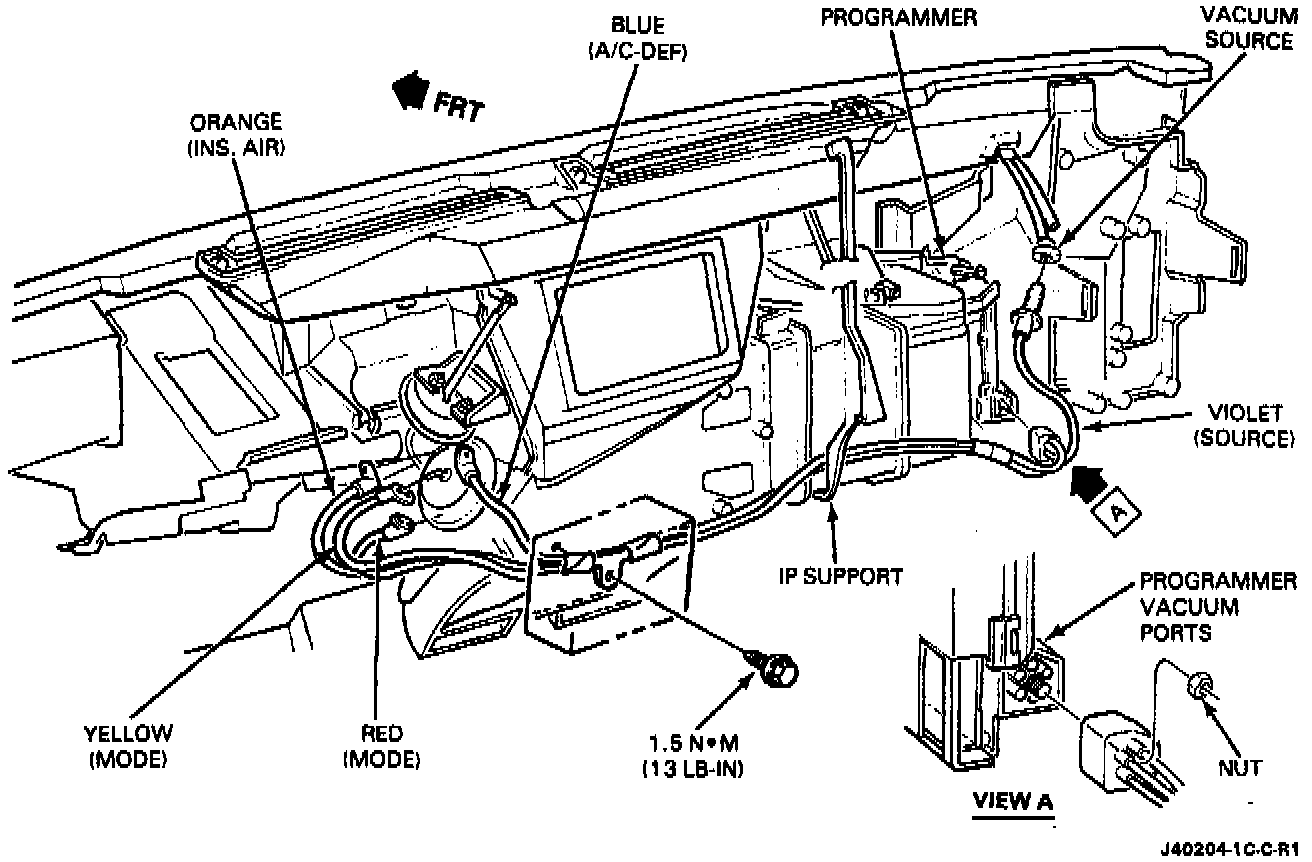

Vacuum Harness Routing (Passenger Compartment):
