Home >> Buick >> 1985 >> Regal V6-260 4.3L DSL >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Throttle Position Sensor >> Testing and Inspection

Throttle Position Sensor: Testing and Inspection

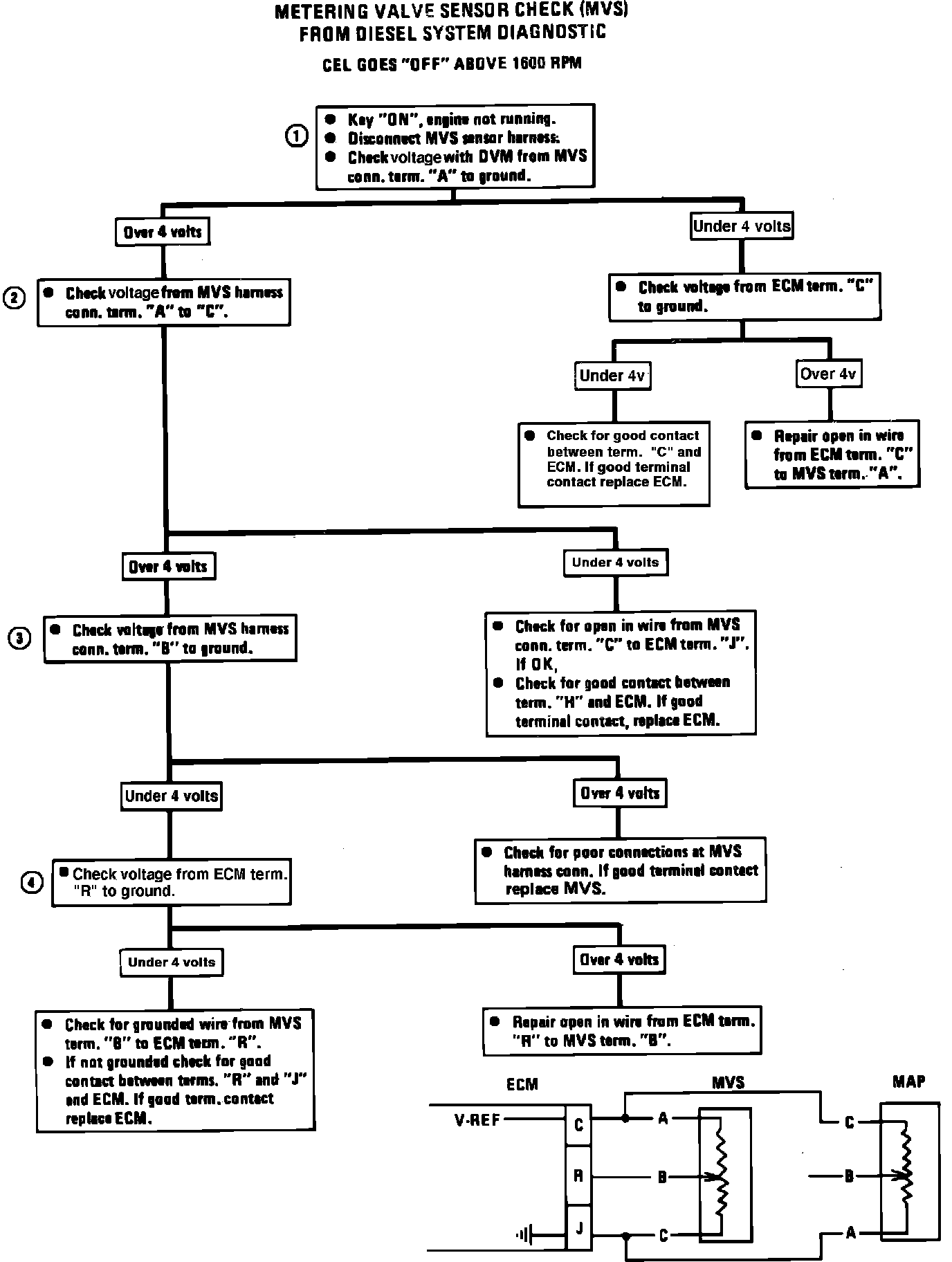

Fig. 4 DEC System Metering Valve Sensor (MVS) Diagnosis:
