System Specifications

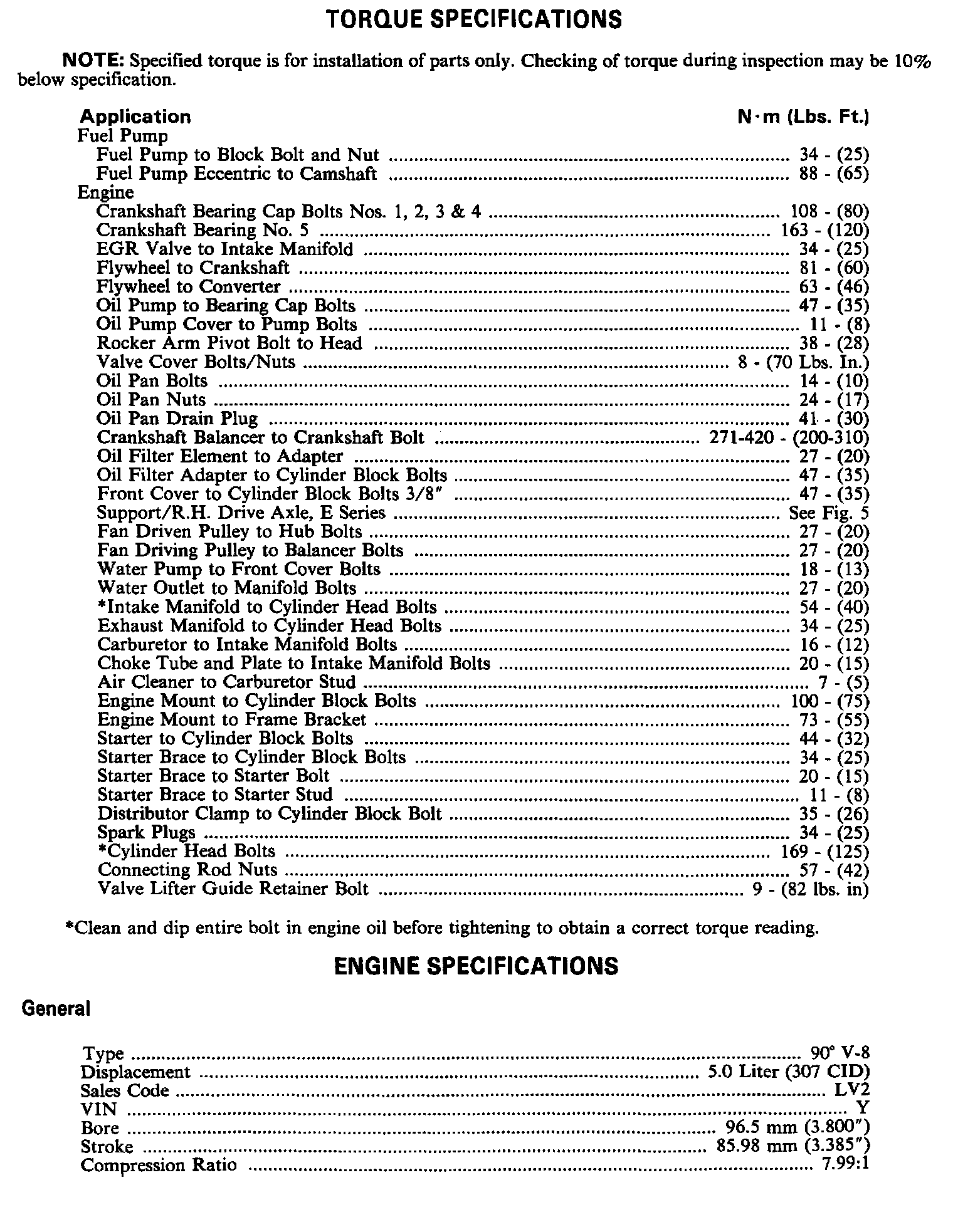

Torque & Engine Specifications:

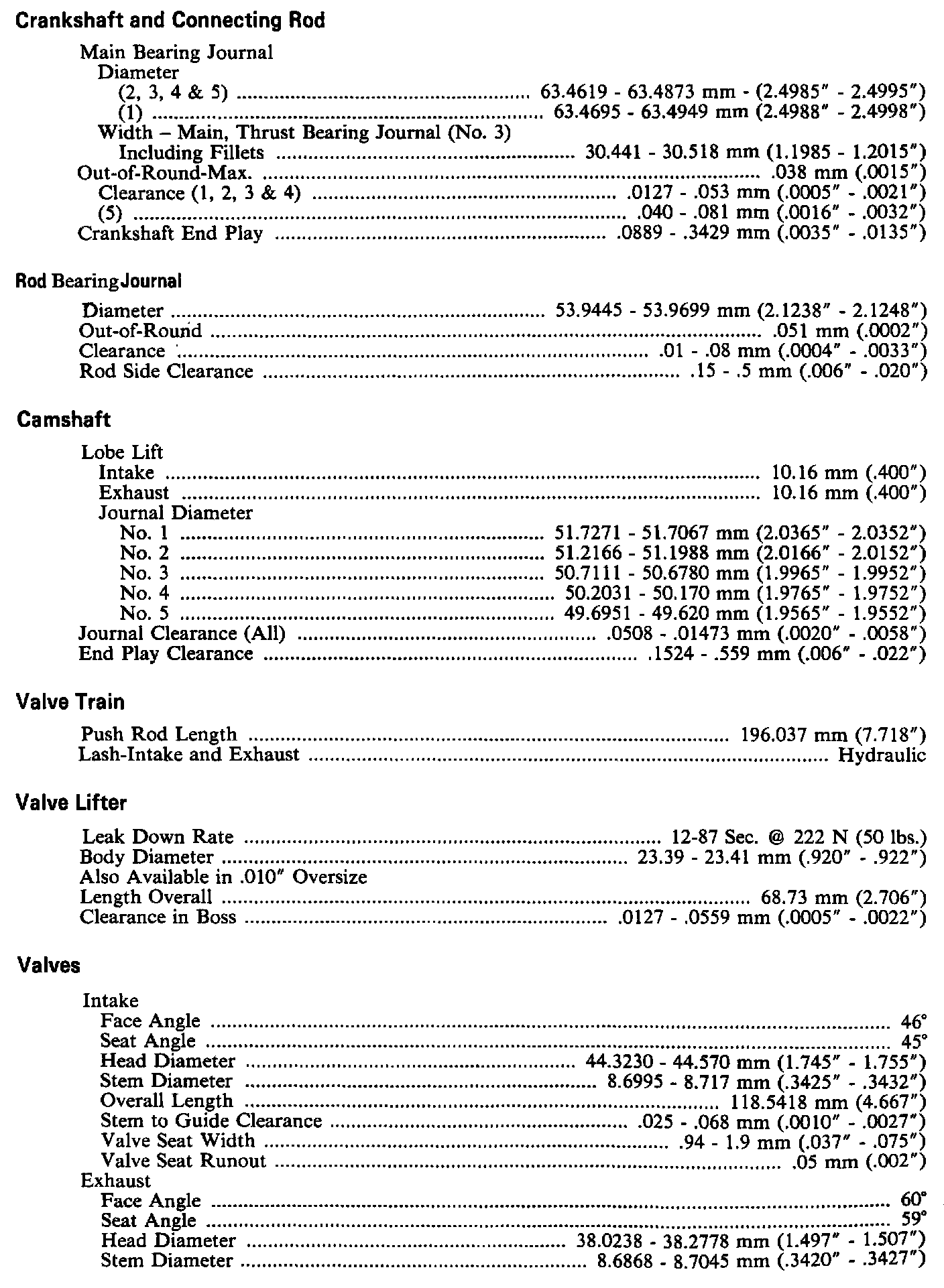

Continued Engine Specifications:

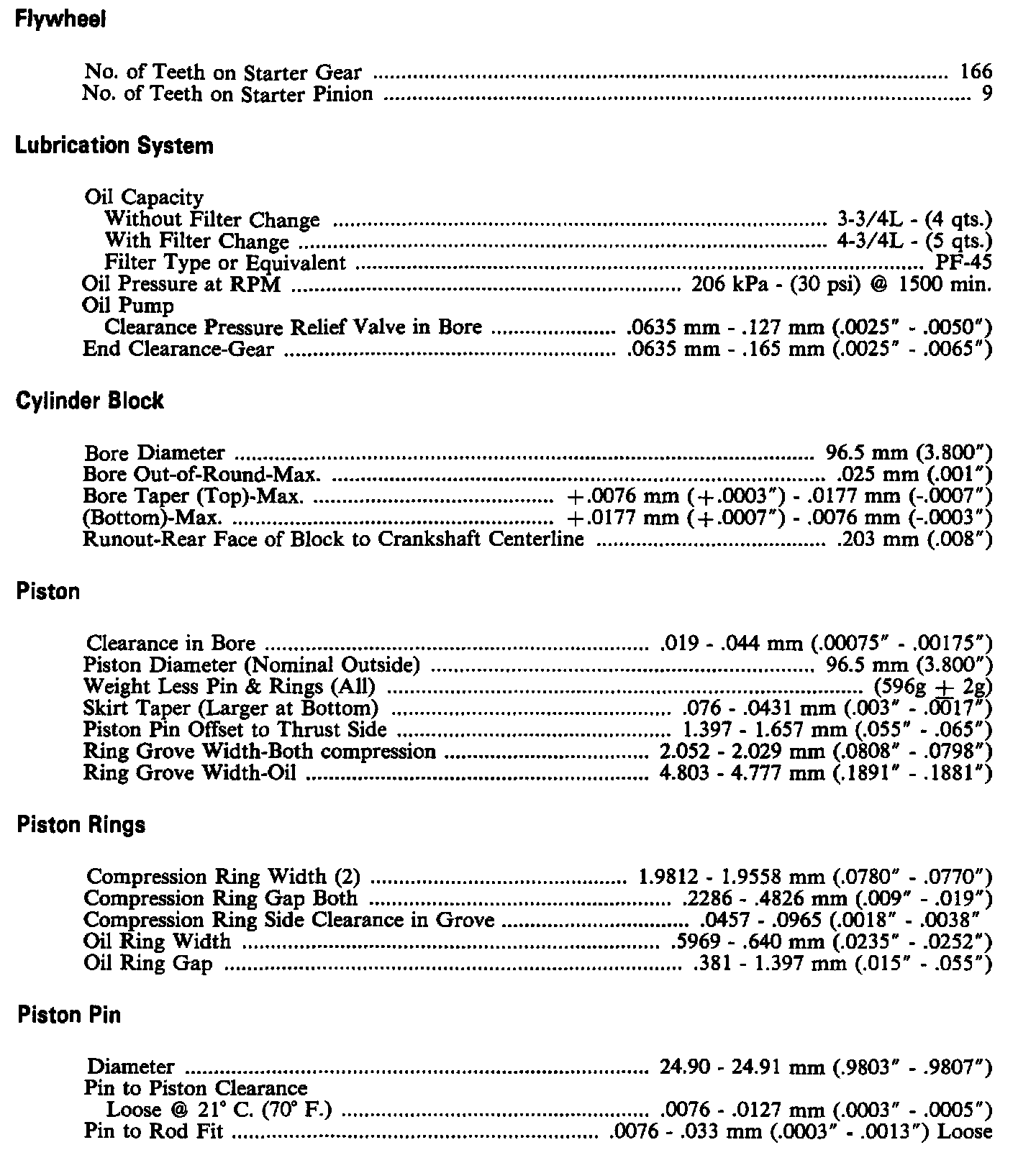

Continued Engine Specifications:





Continued Engine Specifications:






Intake Manifold Sequence:





Cylinder Head Sequence:
