Electronic Spark Control Module: Locations

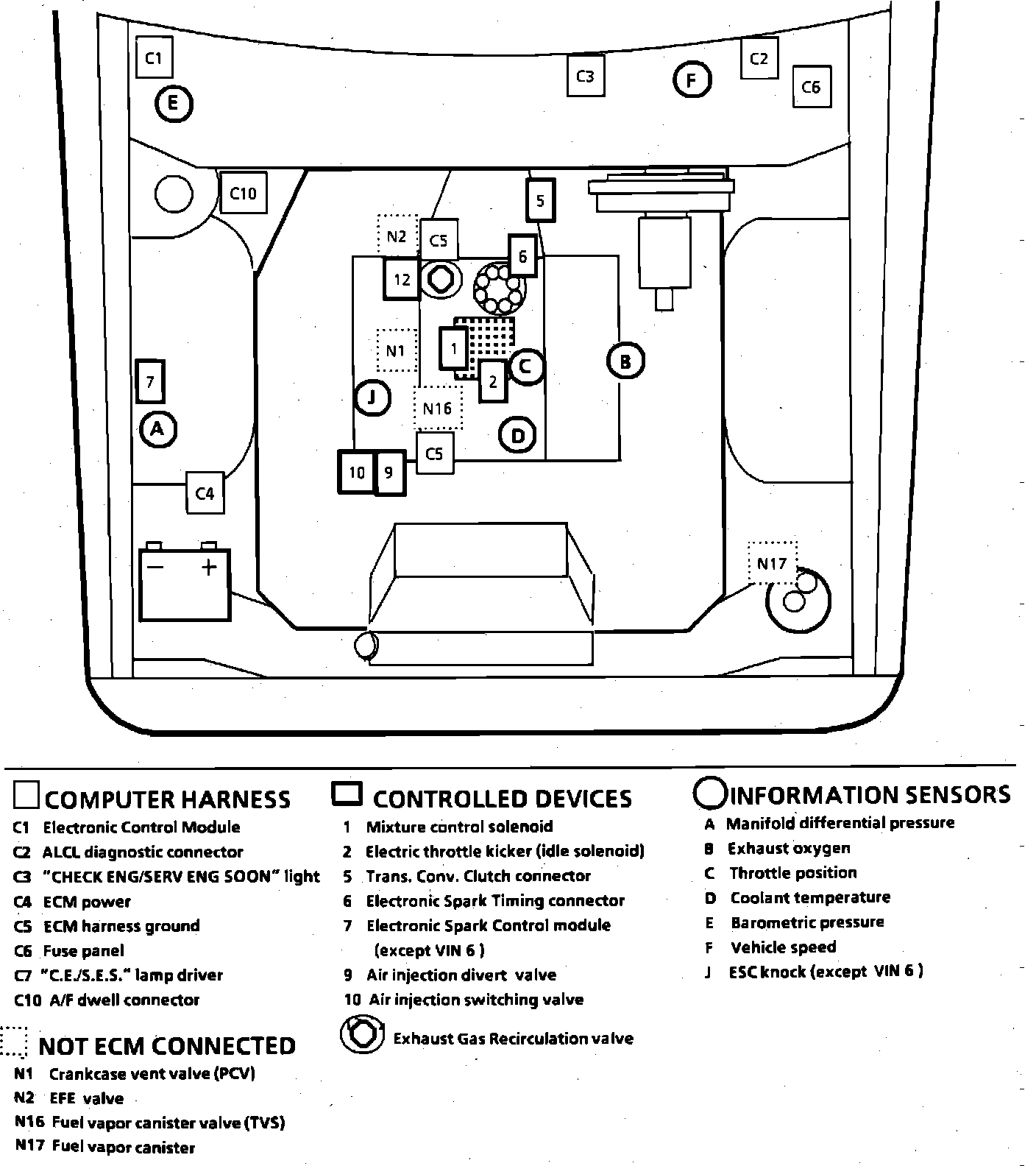

Engine Component Locations.:




On RH Wheelwell

Applicable to: V8-305/5.0L & V8-350/5.7L Engines
