Home >> Buick >> 1984 >> Regal V6-252 4.1L >> Repair and Diagnosis >> Diagrams >> Components >> Miscellaneous Components >> Choke Heater

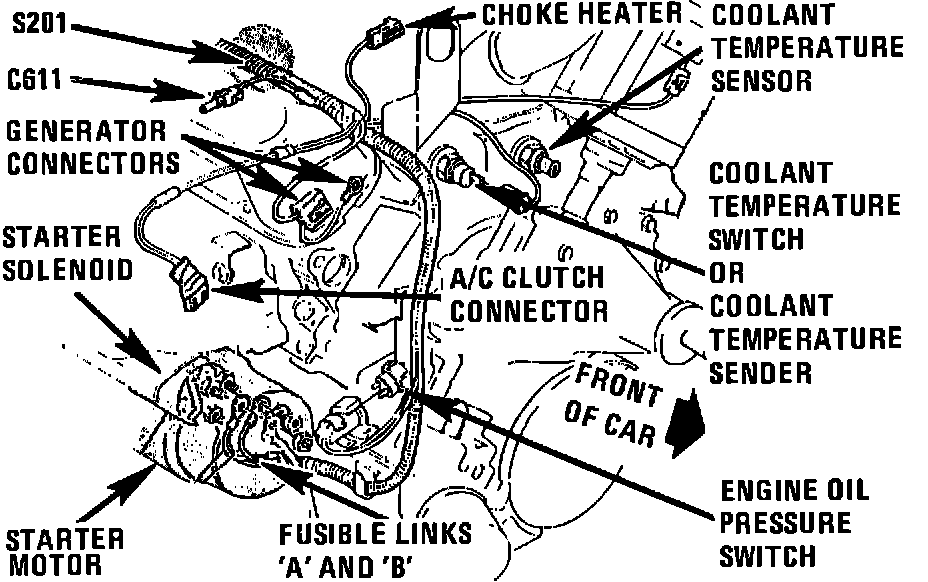

Choke Heater

Front Of V6 Gasoline Engine.:

On Side Of Carburetor
