Home >> Buick >> 1984 >> Century V6-231 3.8L >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Engine Control Module

Engine Control Module

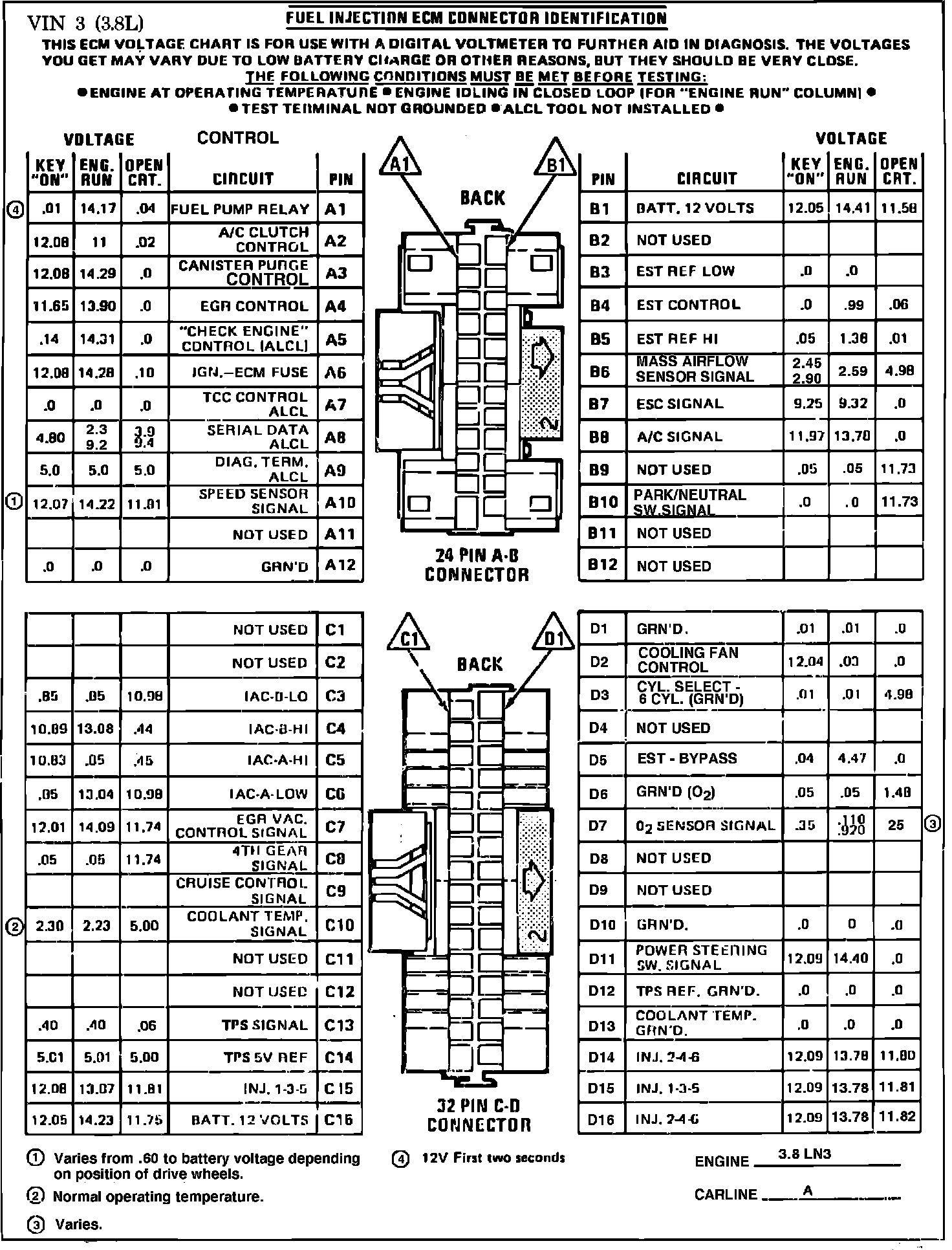

Fig. 001 ECM Connector Terminal Identification & Voltage Specifications:
