Distributed function: Input/output

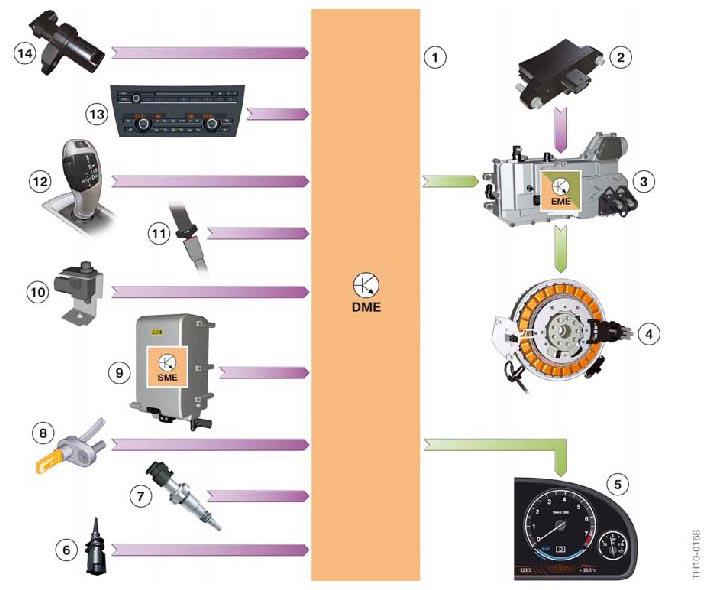

The following graphic provides an overview of the inputs and outputs of the automatic start-stop function in the vehicle.
EXPLANATION REFERENCE CHART
| Index | Explanation |
|---|---|
| 1 | Digital Engine Electronics (DME) |
| 2 | Rotor position sensor of electric motor |
| 3 | Electric motor electronics (EME) |
| 4 | Electric motor |
| 5 | Instrument cluster |
| 6 | Outside temperature sensor |
| 7 | Coolant temperature sensor |
| 8 | Wheel speed sensor |
| 9 | Battery management electronics (SME) |
| 10 | Hood contact switch |
| 11 | Seat belt buckle switch |
| 12 | Gear selector |
| 13 | Integrated automatic heating/air conditioning |
| 14 | Crankshaft sensor |
