Understeer/Oversteer Conditions

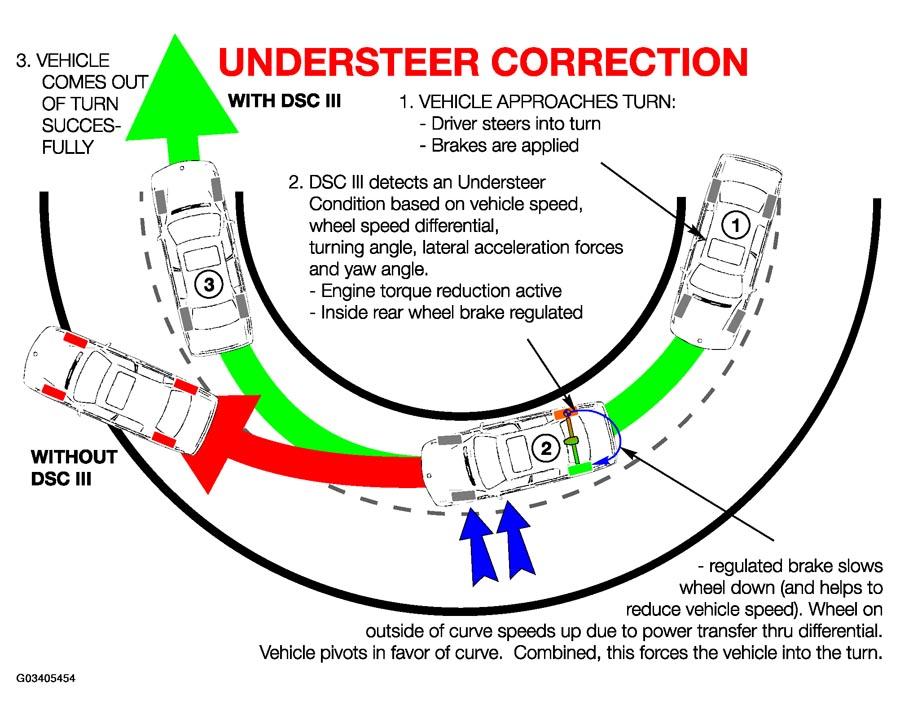

Fig 1: Understeer Correction Diagram

G03405454

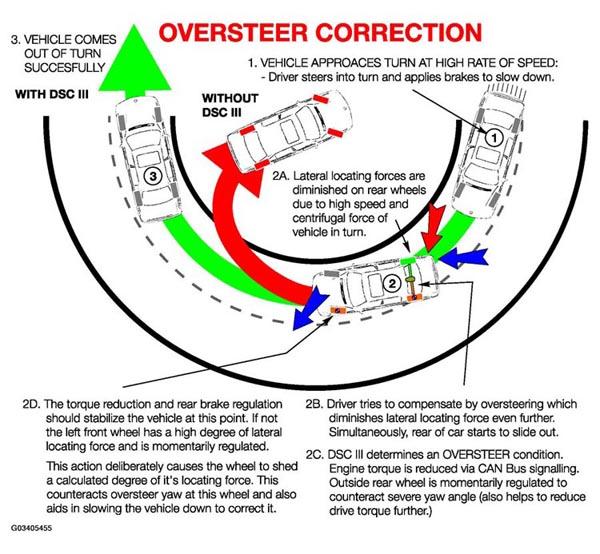

Fig 2: Oversteer Correction Diagrams

G03405455
