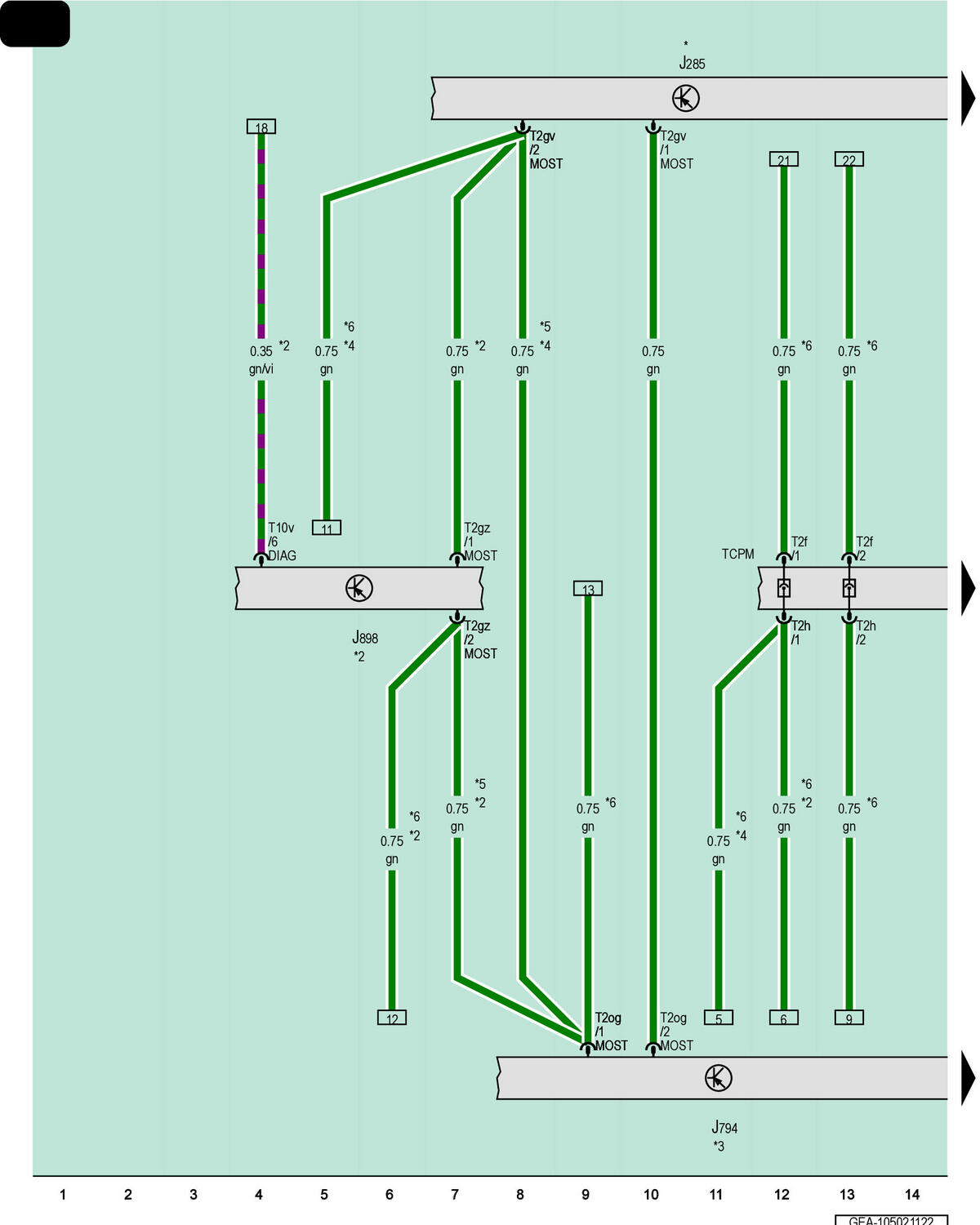

Instrument Cluster Control Module, Information Electronics Control Module 1, Windshield Projection Head Up Display Control Module
J285
Instrument Cluster Control Module
J794
Information Electronics Control Module 1
J898
Windshield Projection Head Up Display Control Module
T2f
2-Pin Connector, Black
T2gv
2-Pin Connector, Black
T2gz
2-Pin Connector, Black
T2h
2-Pin Connector, Black
T2ik
2-Pin Connector, Black
TCPM
Coupling Point on Instrument Panel, Center
*
Refer to Applicable Windshield Projection Wiring Diagram
*2
For Vehicles with Bang & Olufsen Sound System
*3
For Vehicles Without TV Tuner
*4
For Vehicles with TV Tuner
*5
For Vehicles with Bose Sound System
*6
For Vehicles with Standard Sound System
*7
For Vehicles Without Windshield Projection
*8
For Vehicles with Windshield Projection
