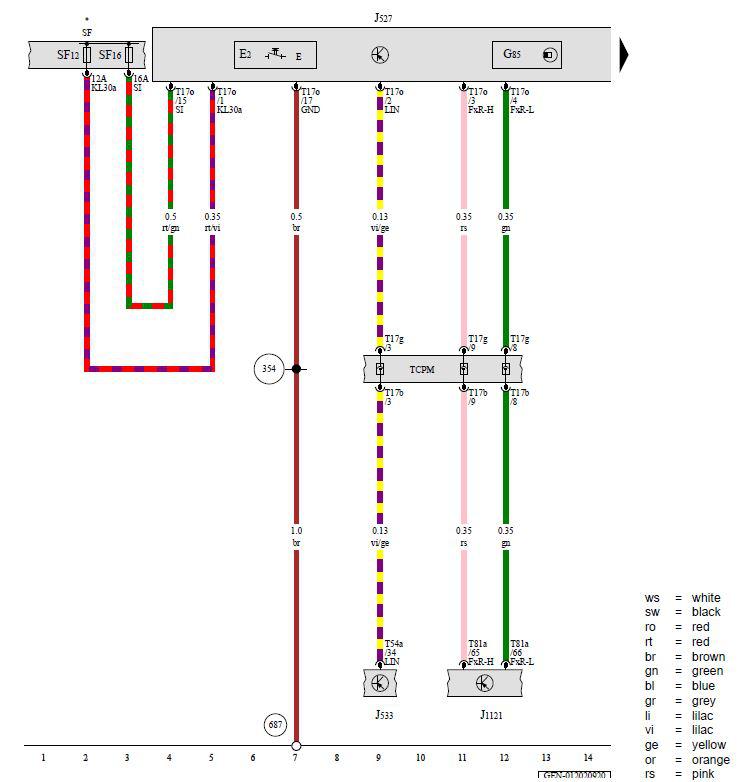

Steering Column Electronics Control Module, Data Bus on Board Diagnostic Interface, Driver Assistance Systems Control Module
E - Windshield Wiper Switch
E2 - Turn Signal Switch
G85 - Steering Angle Sensor
J527 - Steering Column Electronics Control Module
J533 - Data Bus on Board Diagnostic Interface
J1121 - Driver Assistance Systems Control Module
SF - Fuse Panel F
SF12 - Fuse 12 (On Fuse Panel F)
SF16 - Fuse 16 (On Fuse Panel F)
T17b - 17-Pin Connector, Blue
T17g - 17-Pin Connector, Blue
T17o - 17-Pin Connector, Yellow
T54a - 54-Pin Connector, Black
T81a - 81-Pin Connector, Black
TCPM - Coupling Point on Instrument Panel, Center
354 - Ground Connection 6 (in Instrument Panel Wiring Harness)
687 - Ground Connection 1 on Center Tunnel
* - Refer to Applicable Wiring Diagram for Fuse Positions
