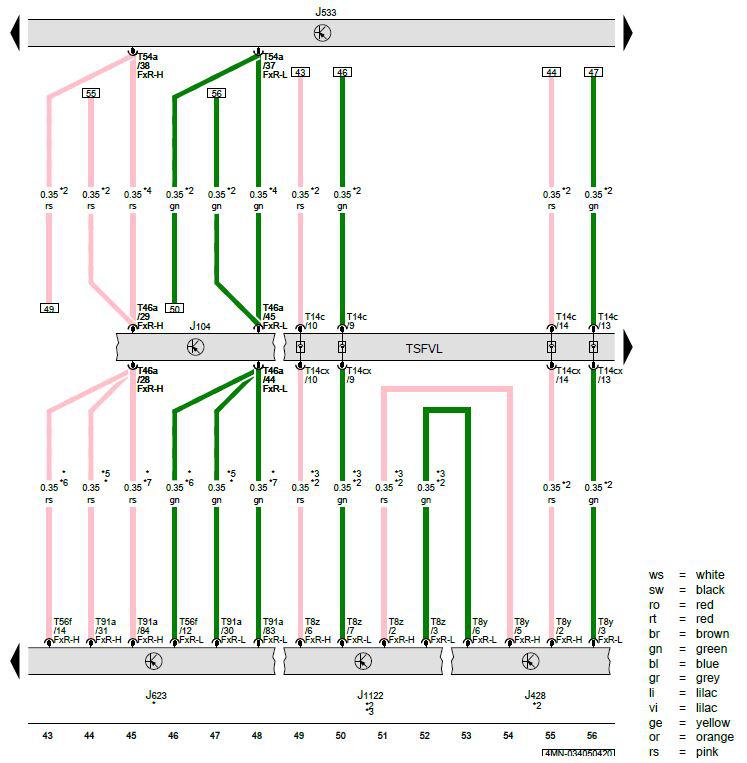

ABS Control Module, Control Module for Adaptive Cruise Control, Data Bus on Board Diagnostic Interface, Engine/ Motor Control Module, Laser Distance Regulation Control Module
J104 - ABS Control Module
J428 - Control Module for Adaptive Cruise Control
J533 - Data Bus on Board Diagnostic Interface
J623 - Engine/Motor Control Module
J1122 - Laser Distance Regulation Control Module
T8y - 8-Pin Connector, Black
T8z - 8-Pin Connector, Black
T14c - 14-Pin Connector, Black
T14cx - 14-Pin Connector, Brown
T46a - 46-Pin Connector, Black
T54a - 54-Pin Connector, Black
T56f - 56-Pin Connector, Black
T91a - 91-Pin Connector, Black
TSFVL - Coupling Point on Left Front Bumper
* - Refer to Applicable Engine Wiring Diagram
*2 - For Vehicles with Adaptive Cruise Control (ACC)
*3 - Depending on Equipment
*4 - For Vehicles Without Adaptive Cruise Control (ACC)
*5 - For Vehicles with 2.0L Gasoline Engine
*6 - For Vehicles with Gasoline Engine
*7 - For Vehicles with Diesel Engine
