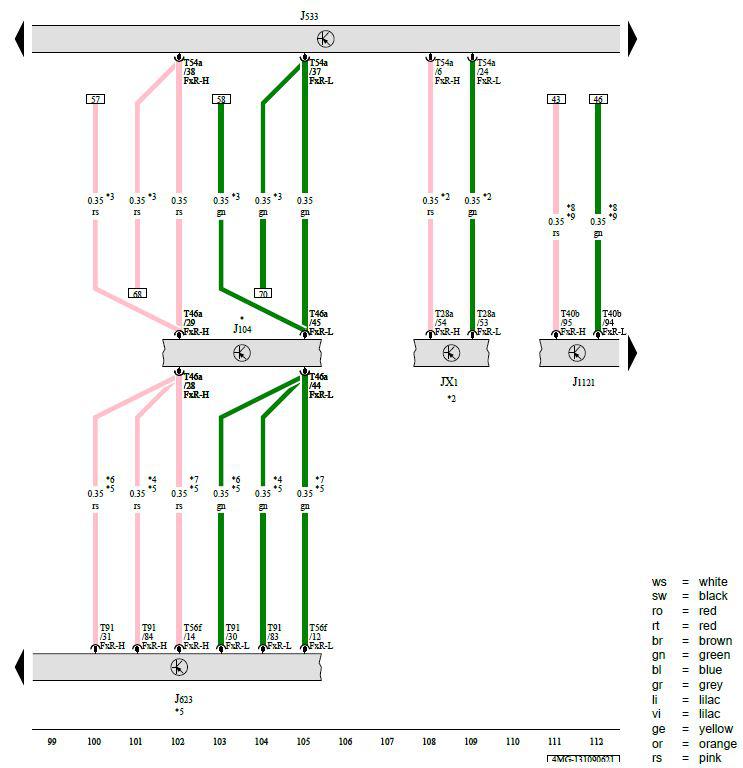

Electric Drive Power and Control Electronics, ABS Control Module, Data Bus on Board Diagnostic Interface, Engine/ Motor Control Module, Driver Assistance Systems Control Module
JX1 - Electric Drive Power and Control Electronics
J104 - ABS Control Module
J533 - Data Bus on Board Diagnostic Interface
J623 - Engine/Motor Control Module
J1121 - Driver Assistance Systems Control Module
T28a - 28-Pin Connector, Black
T40b - 40-Pin Connector, Black
T46a - 46-Pin Connector, Black
T54a - 54-Pin Connector, Black
T56f - 56-Pin Connector, Black
T91 - 91-Pin Connector, Black
* - Refer to Applicable Wiring Diagram for Automatic Transmission
*2 - For Vehicles with Hybrid Drive
*3 - For Vehicles with Adaptive Cruise Control (ACC)
*4 - For Vehicles with Diesel Engine
*5 - Refer to Applicable Engine Wiring Diagram
*6 - For Vehicles with 2.0L Gasoline Engine
*7 - For Vehicles with Gasoline Engine
*8 - Depending on Equipment
*9 - For Driver Assistance System
