Repair and Diagnosis (Single Page)
>>
Quick Lookups
>>
Wiring Diagrams
>>
Wiring Diagram
>>
Wiring Diagram
>>

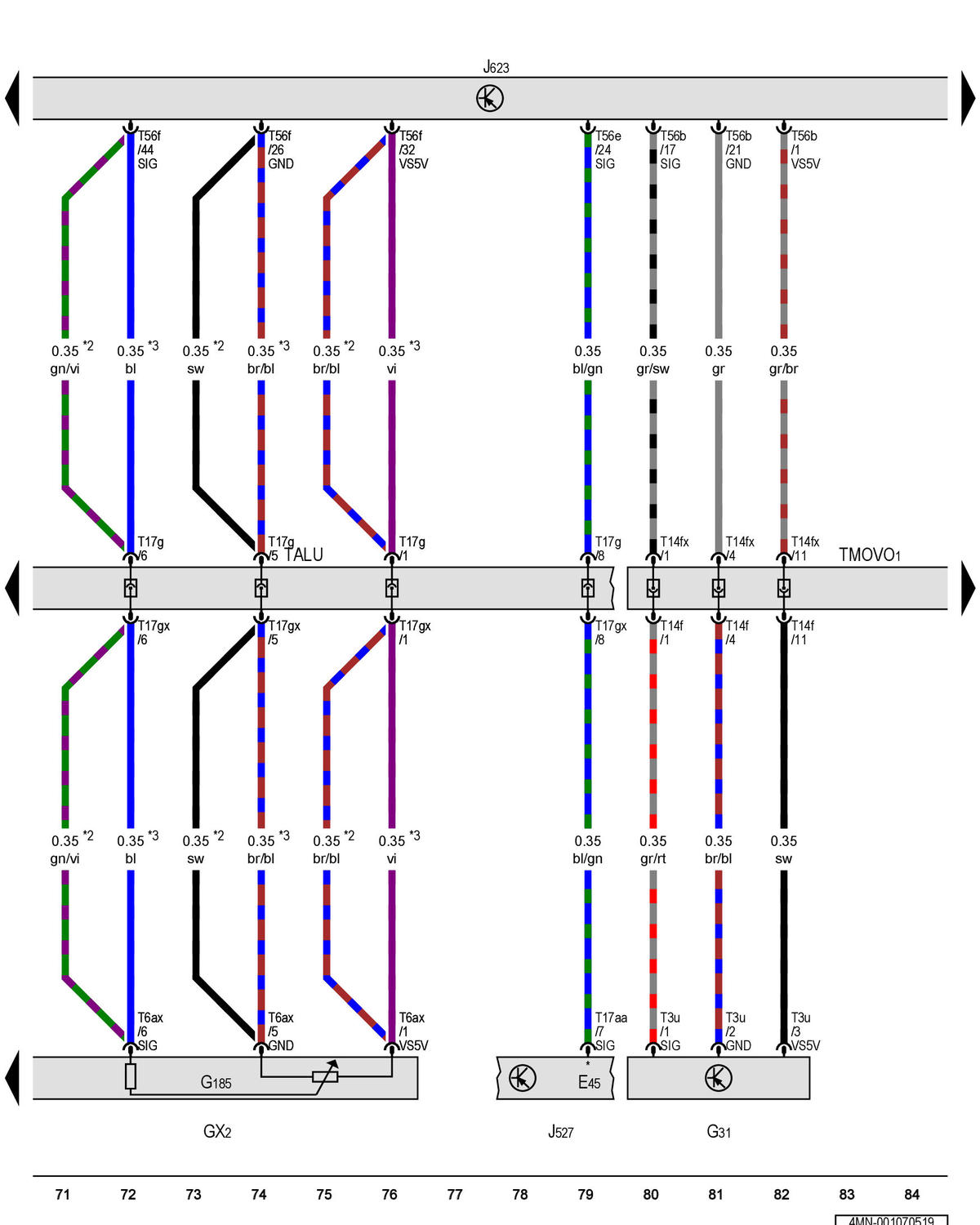

Accelerator Pedal Module, Charge Air Pressure Sensor, Steering Column Electronics Control Module, Engine/Motor Control Module
>>
Notes
Accelerator Pedal Module, Charge Air Pressure Sensor, Steering Column Electronics Control Module, Engine/Motor Control Module: Notes
Courtesy of AUDI OF AMERICA, LLC
Courtesy of AUDI OF AMERICA, LLC
