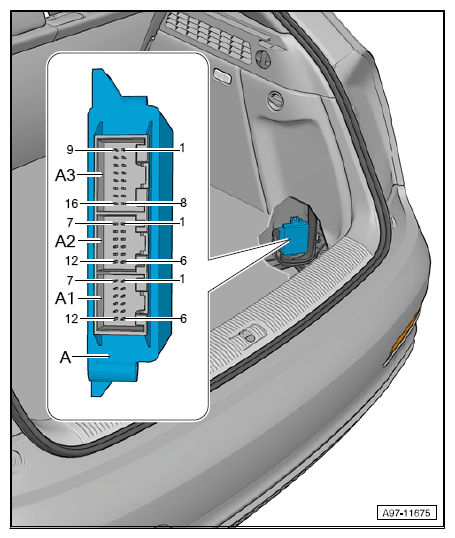

Parking Aid Control Module -J446-/Parallel Parking Assistance Control Module -J791-, Connector View

12-PIN CONNECTOR -T12F-/12-PIN CONNECTOR -T12E-/16-PIN CONNECTOR -T16B-

1. A1  - 12-Pin Connector -T12F-, Black
2. A2  - 12-Pin Connector -T12E-, Brown
3. A3  - 16-Pin Connector -T16B-, Black

Courtesy of AUDI OF AMERICA, LLC
