Electrical Components Locations & Connector End Views -- Q3
>>
Comp. LOC. Vehicle Cabin Modules
>>
Chip Card Reader Control Module J676
>>

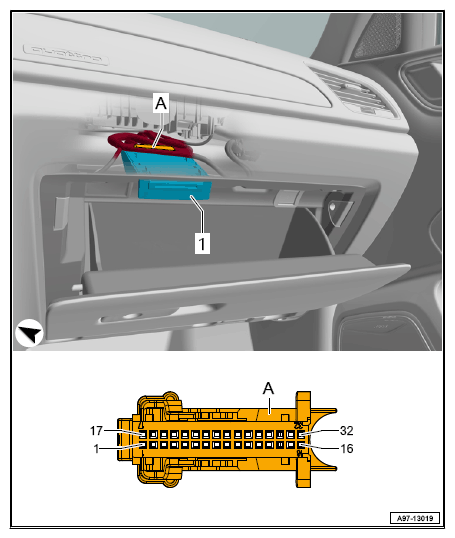

Chip Card Reader Control Module -J676- Connector View
Chip Card Reader Control Module -J676- Connector View
32-PIN CONNECTOR -T32JA-
A
- 32-Pin Connector -T32Ja-, Black
Courtesy of AUDI OF AMERICA, LLC
Courtesy of AUDI OF AMERICA, LLC
