CLIMATRONIC Control Module -J255- Connector Views

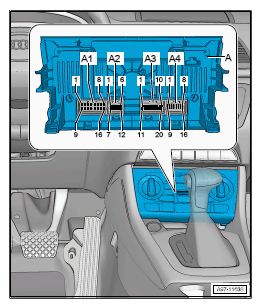

16-PIN CONNECTOR -T16N-/12-PIN CONNECTOR -T12J-/20-PIN CONNECTOR -T20J-/16-PIN CONNECTOR -T16M-

  1. A1  - 16-Pin Connector -T16N-, Black
  2. A2  - 12-Pin Connector -T12J-, Black
  3. A3  - 20-Pin Connector -T20J-, Red
  4. A4  - 16-Pin Connector -T16M-, Black
G12775368Courtesy of AUDI OF AMERICA, LLC
