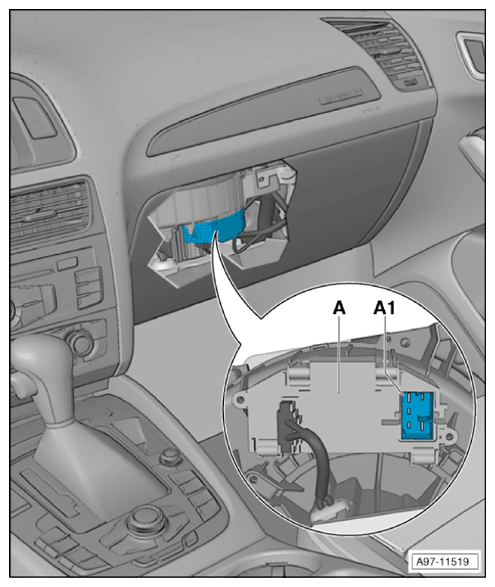

Fresh Air Blower Control Module -J126-

Component Location:

In Front Passenger's Footwell, Behind Glove Compartment

  1. A  - Fresh Air Blower Control Module -J126-
  2. A1  - 6-Pin Connector, brown -T6y-
G12766895Courtesy of AUDI OF AMERICA, LLC
