Component Locations

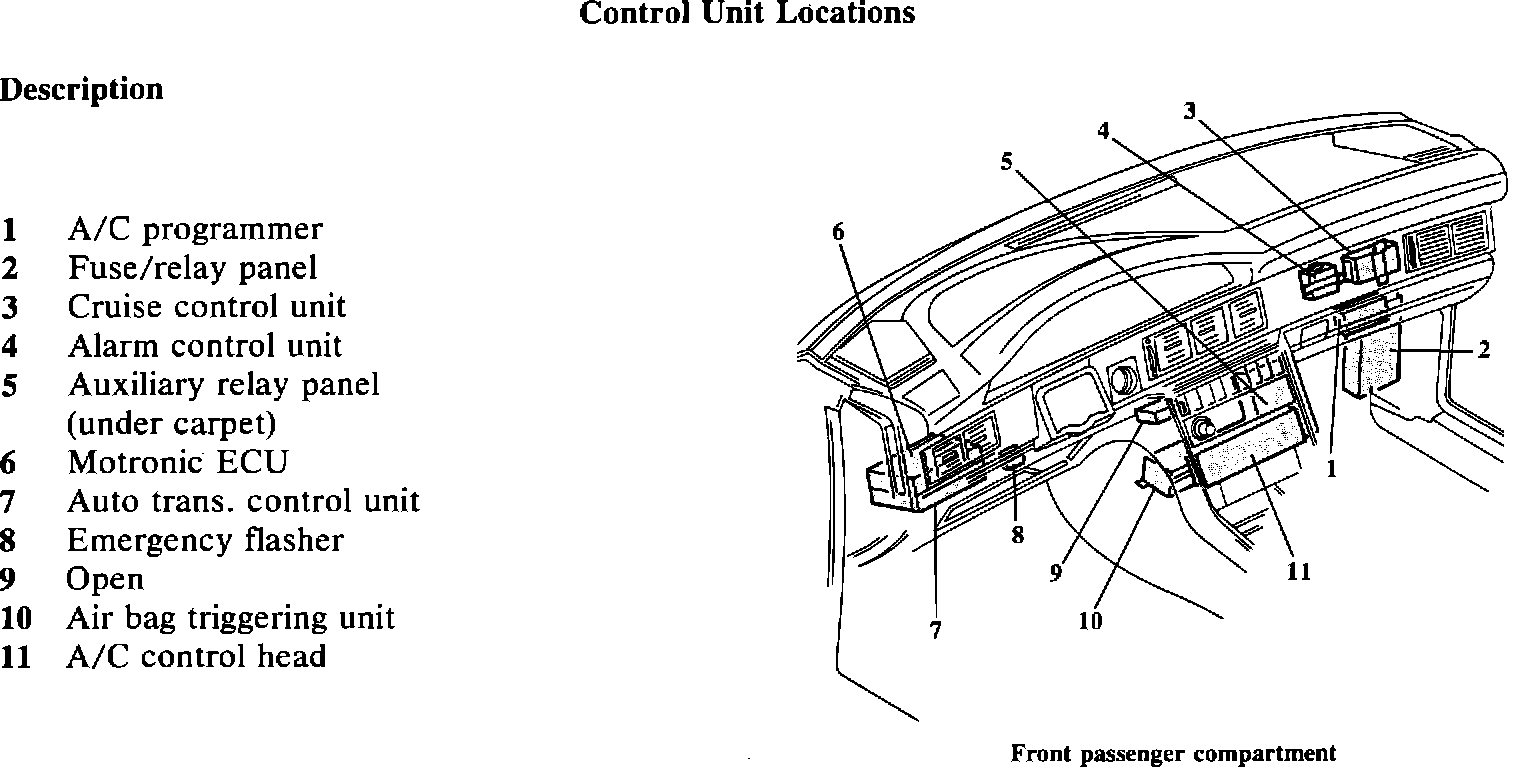

Control Unit Location:





The Motronic Engine Control Module (ECM) is located under the left side of the instrument panel. The Transmission Control Module (TCM), and the ECM are placed together. The ECM is the control module mounted in the top position, the TCM is the control module mounted in the bottom position.
