Knock Sensor: Locations

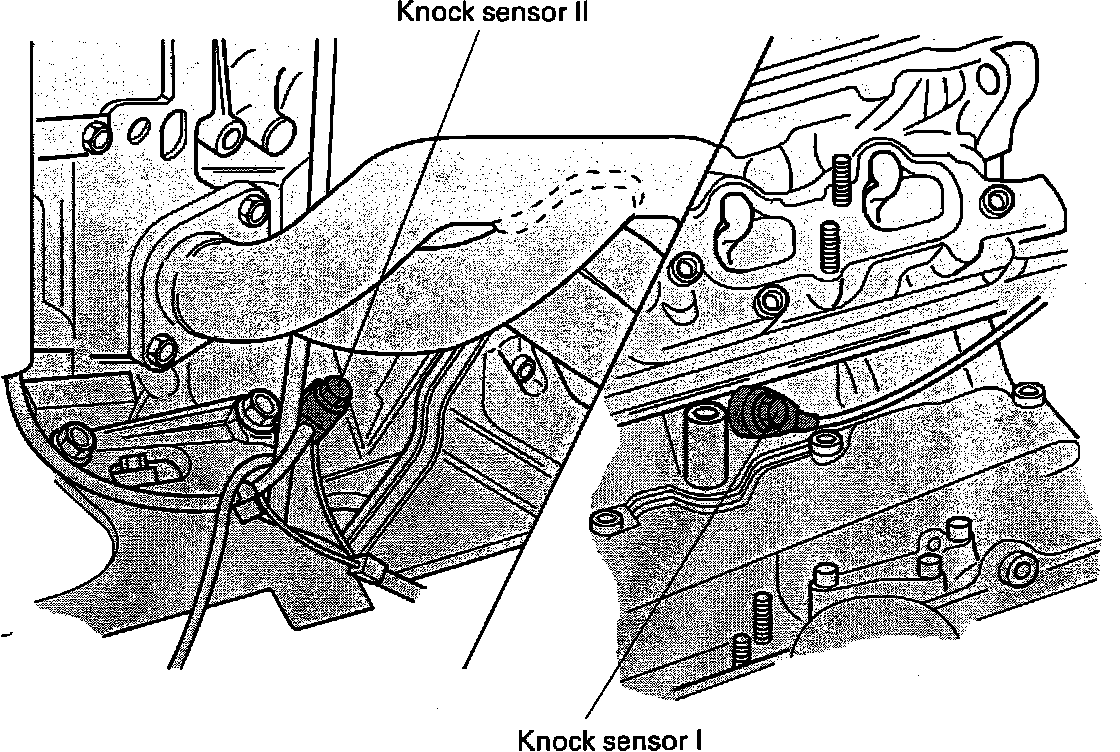

Knock Sensors V8:





Knock Sensor I is mounted on the inside of the right bank of cylinders. Knock Sensor II is mounted on the left side of the engine.
