EGR Temperature Sensor: Locations

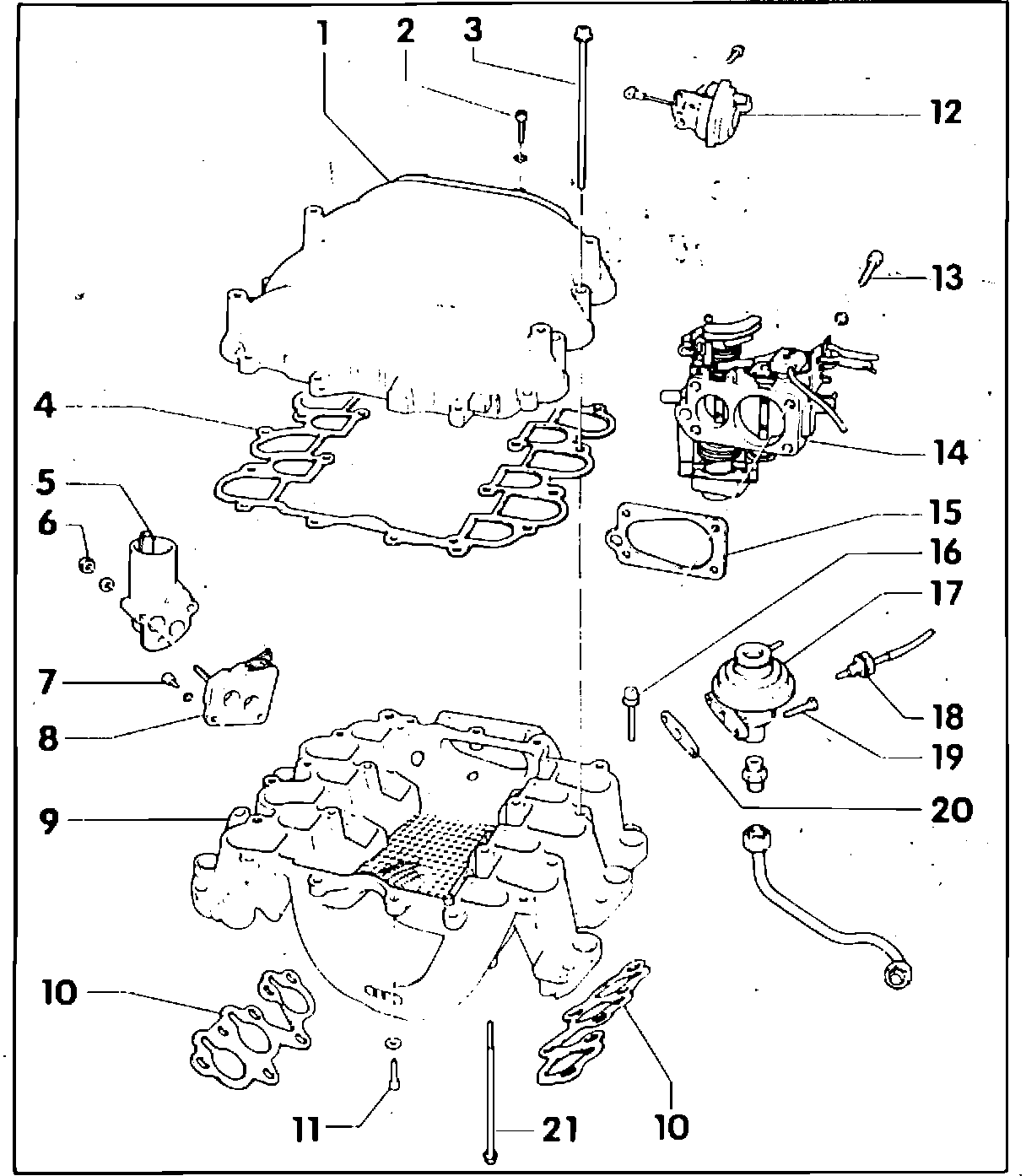

Intake Manifold Exploded View:

Number 18 in the illustration.

The EGR Temperature Sensor is located on the outlet side of the EGR valve.
