Wiring Diagrams

Fig 1: Eagle Power Window Wiring Diagram

G3696

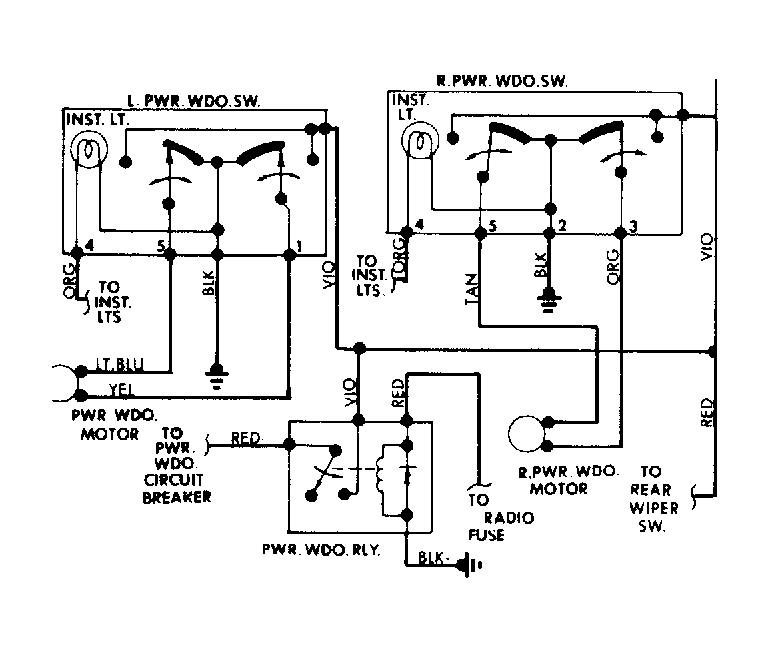

Fig 2: Alliance & Encore Power Window Wiring Diagram

G3697
