Acura
>>
2014
>>
TL Base
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
VSA System Components
>>
Circuit Diagram
>>
Without SH-AWD
Without SH-AWD

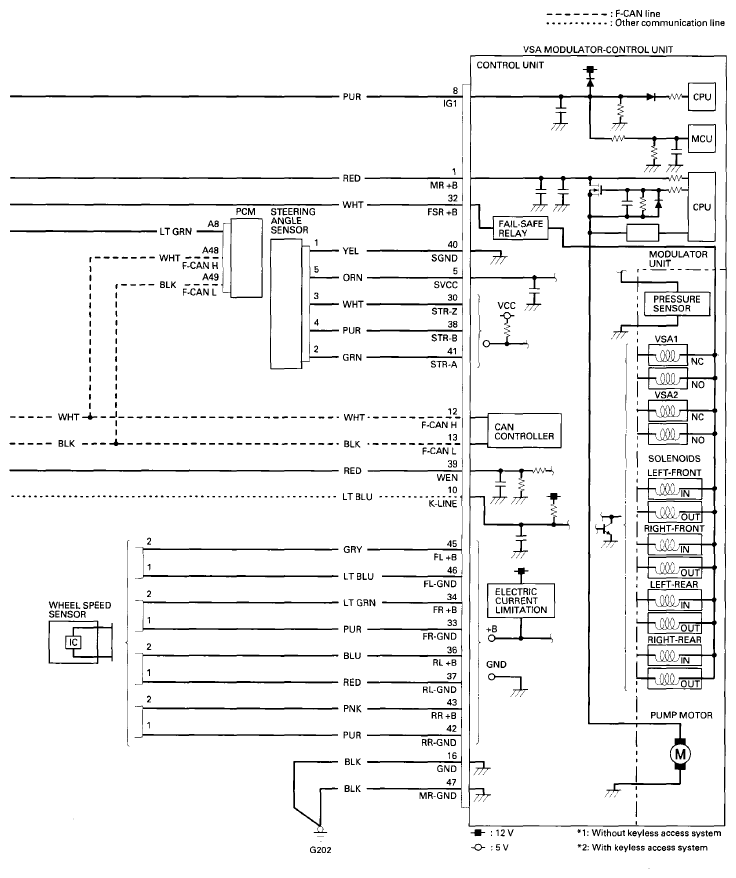

Fig 1: VSA System (Without SH-AWD) - Circuit Diagram (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

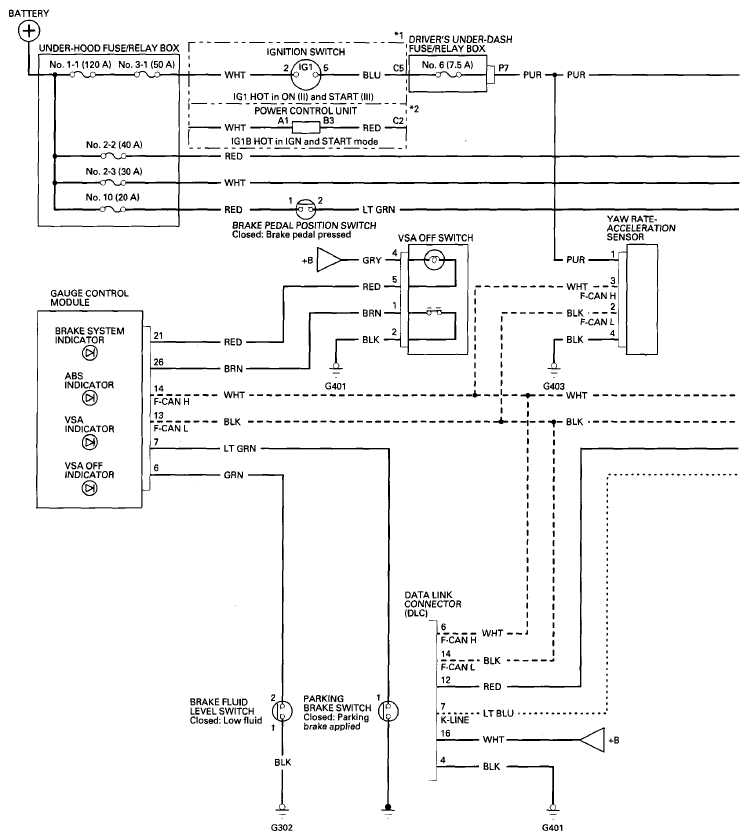

Fig 2: VSA System (Without SH-AWD) - Circuit Diagram (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
