Steering Control Module: Service and Repair

ECPS Control Unit Removal/Installation

1. Remove the driver's dashboard undercover Driver's Dashboard Undercover Removal / Installation.

2. Remove the driver's front door sill trim.

3. Remove the driver's kick panel.

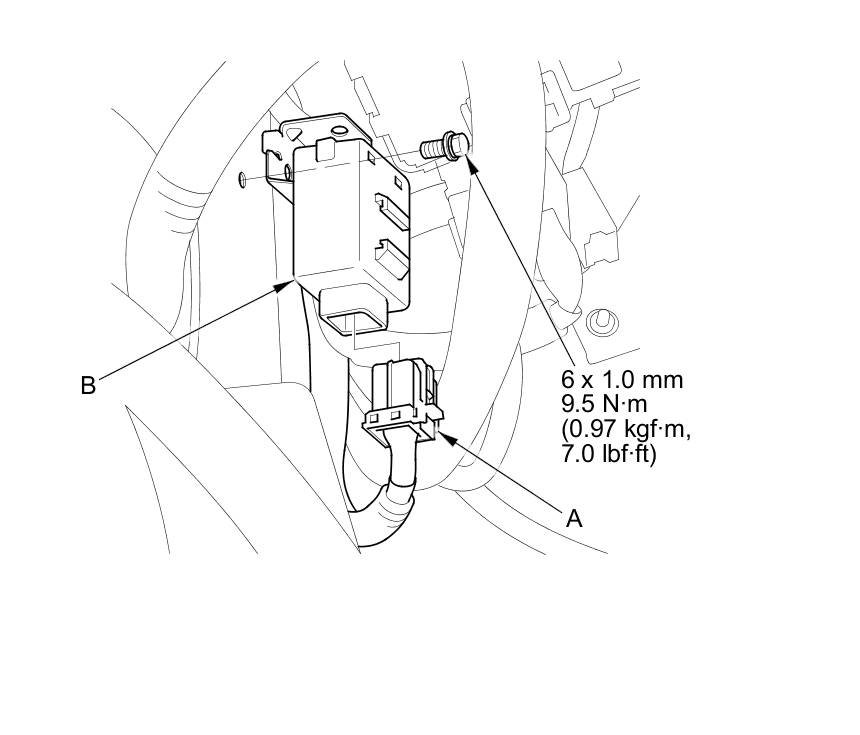

4. Disconnect the connector (A) from the ECPS control unit (B), then remove the control unit.





5. Install the ECPS control unit in the reverse order of removal.
