Home >> Acura >> 2012 >> ZDX V6-3.7L >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Keyless Starting System >> Diagrams >> Connector Views >> Remote Engine Starting Control Unit Connector View (Acura Accessory)

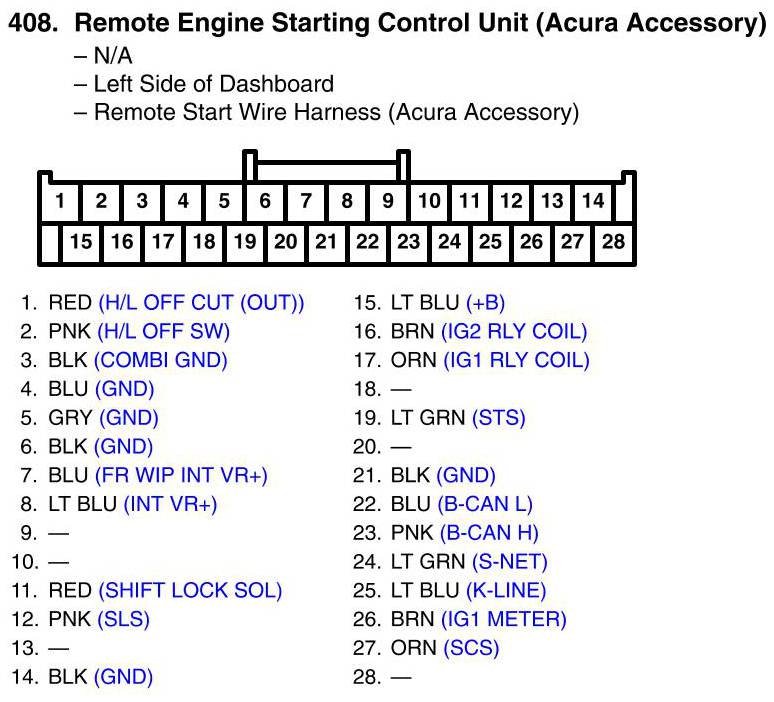

Remote Engine Starting Control Unit Connector View (Acura Accessory)
