Relay And Control Unit Locations - Dashboard
Relay And Control Unit Locations - Dashboard

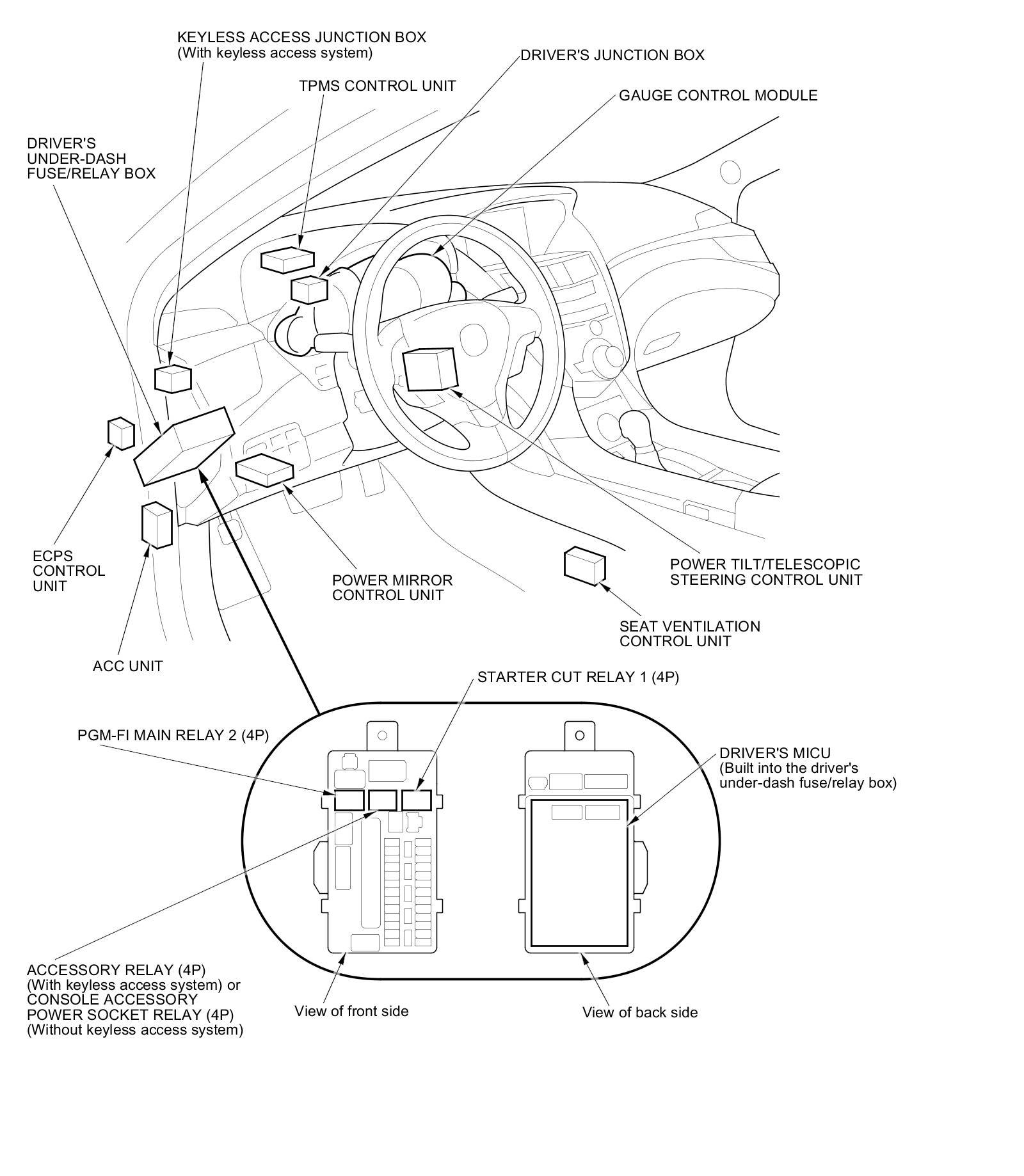

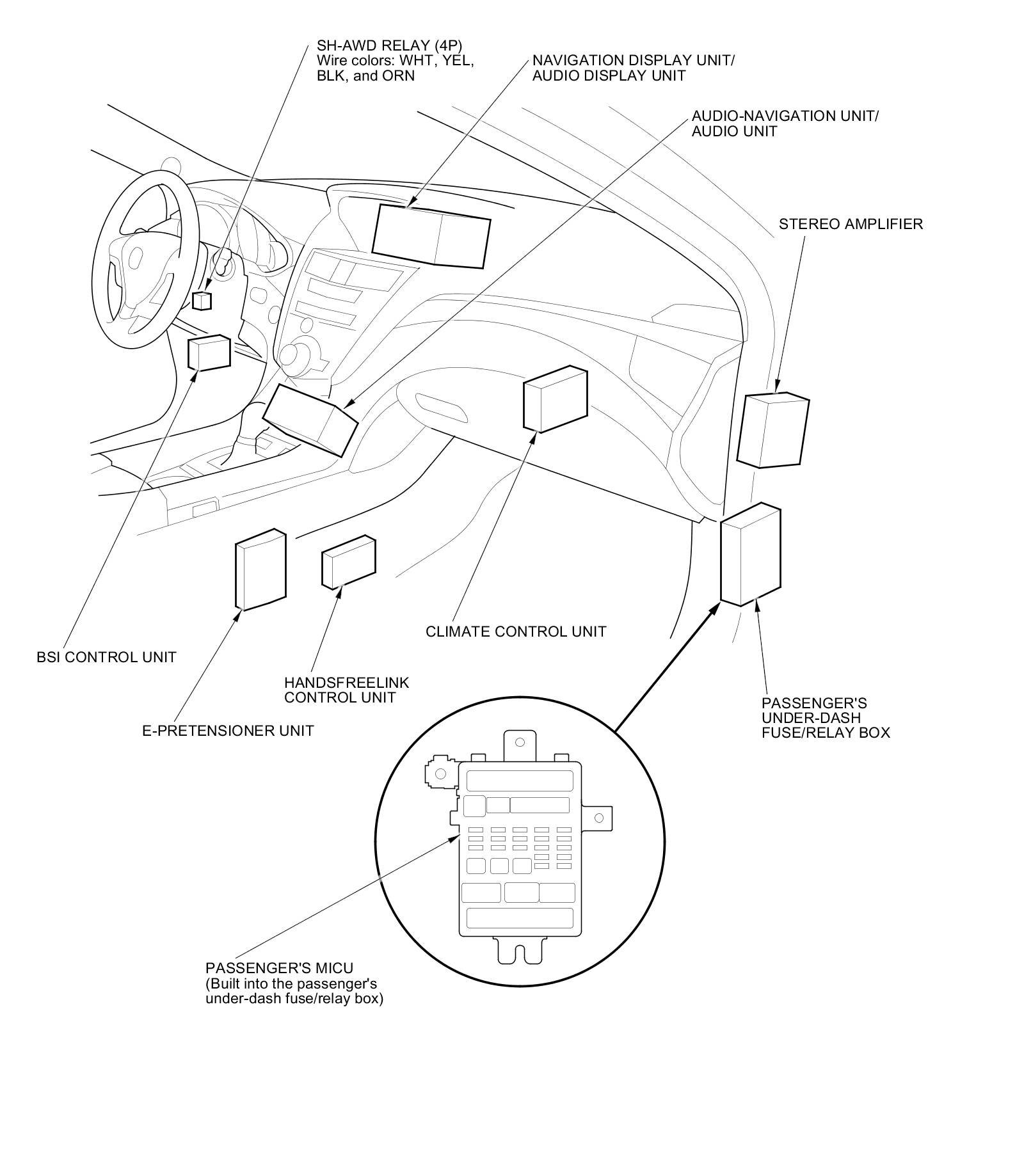

Relay and Control Unit Locations - Dashboard

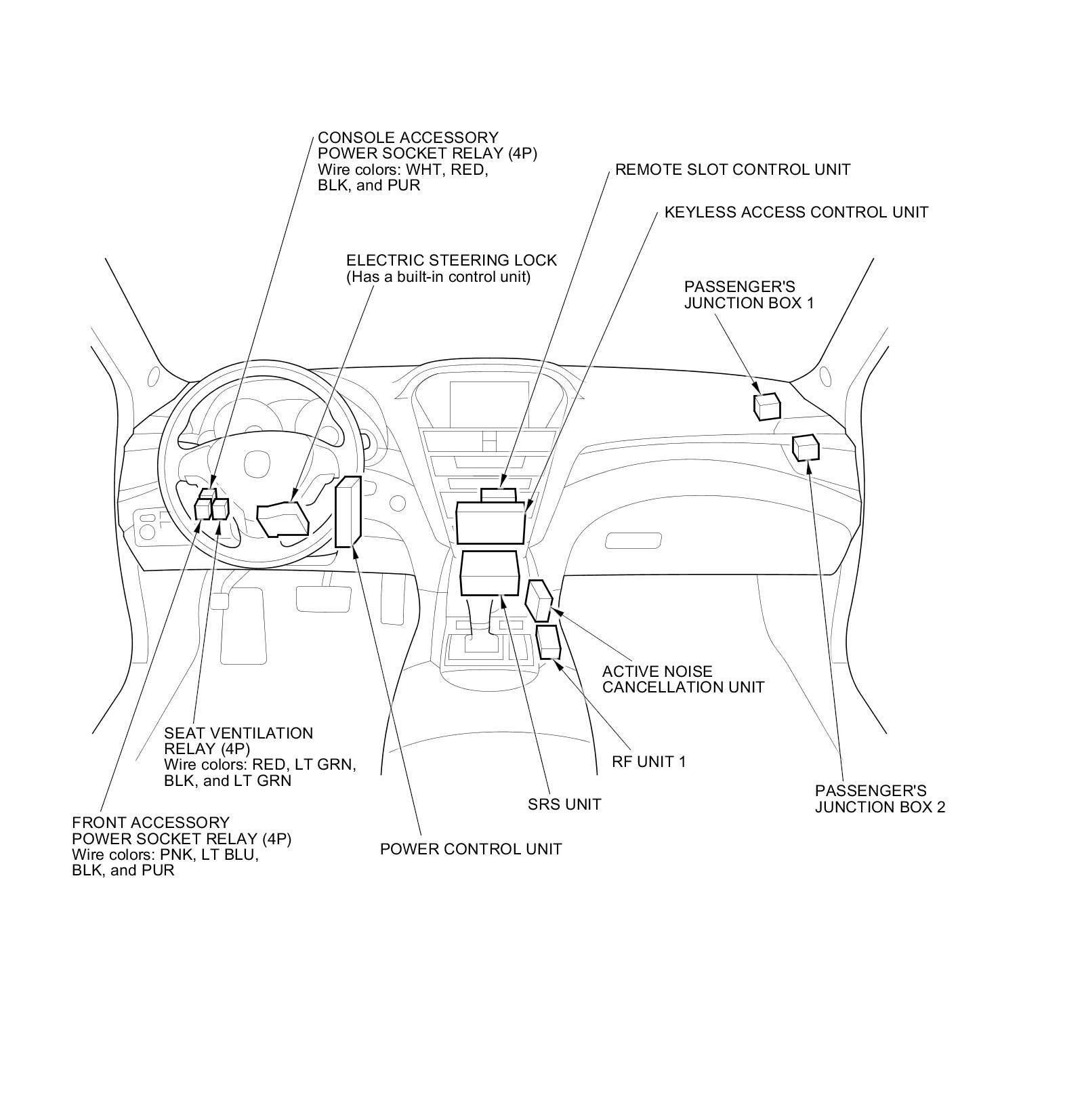

With Keyless Access System

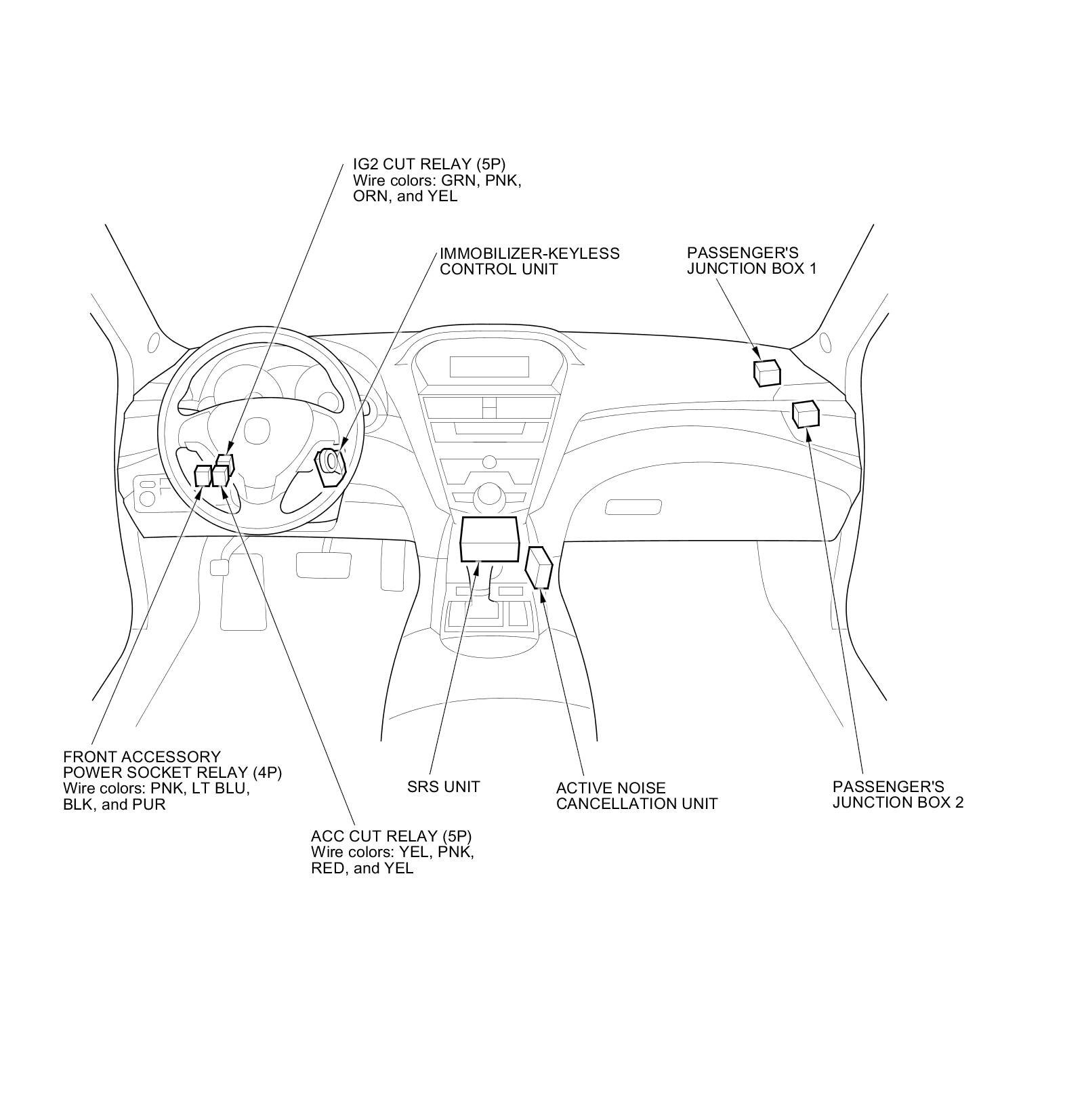

Without Keyless Access System
