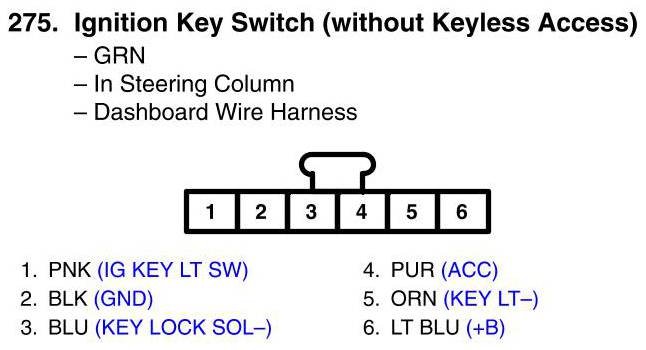

Ignition Key Switch Connector View (Without Keyless Access)
Ignition Key Switch Connector View (Without Keyless Access)
