Acura
>>
2012
>>
ZDX V6-3.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuse Block
>>

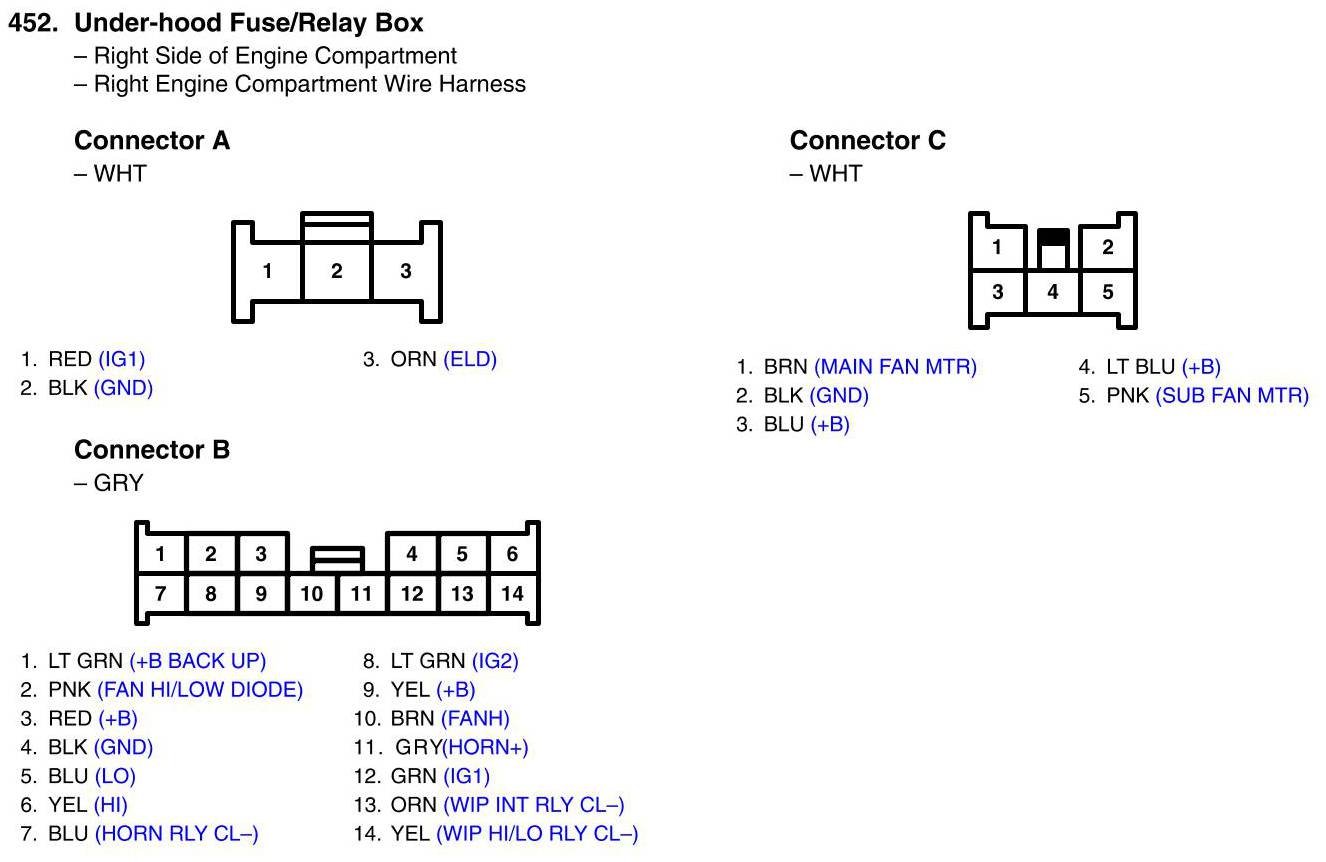

Under-hood Fuse/Relay Box Connector View
Under-hood Fuse/Relay Box Connector View
