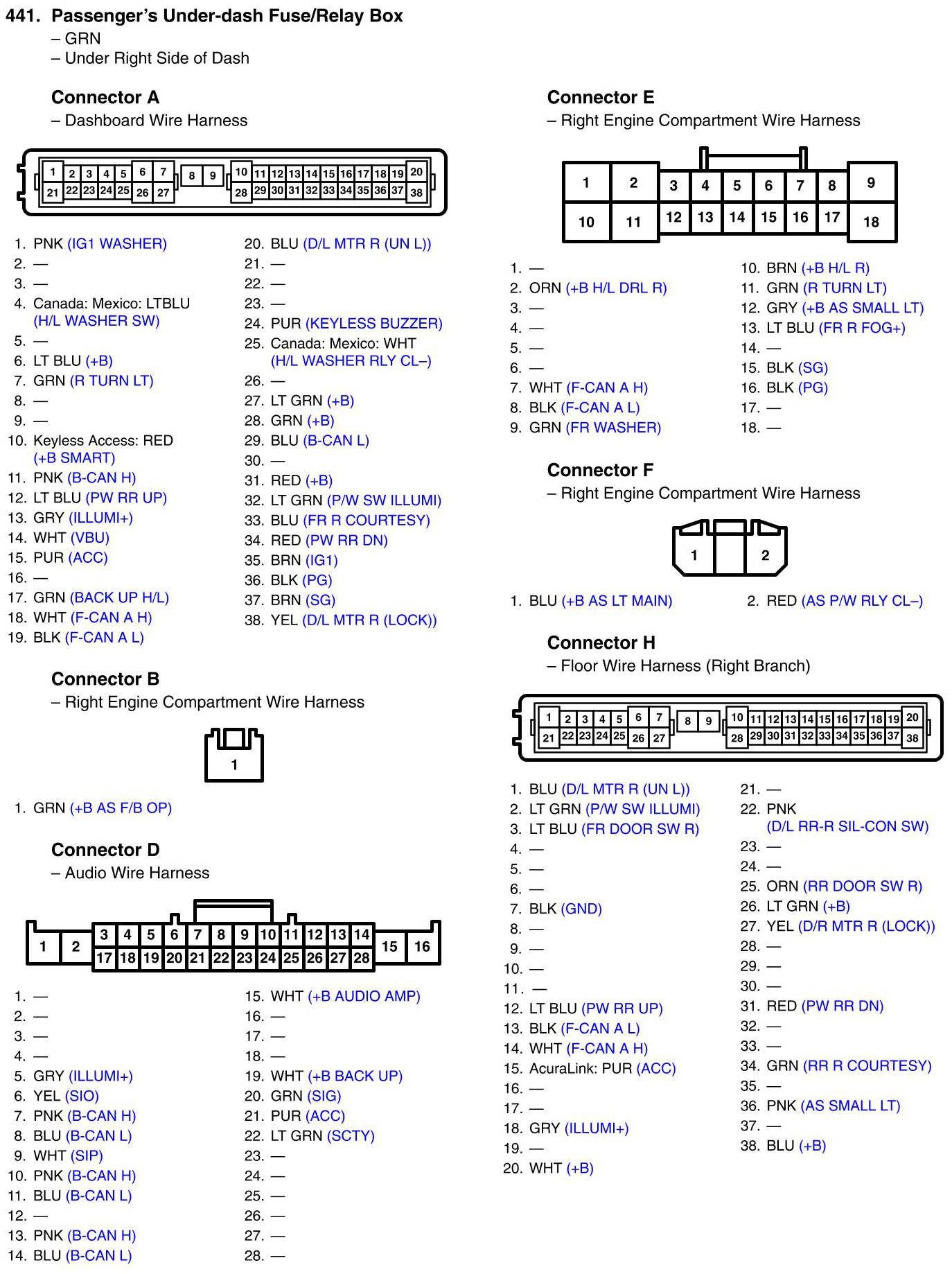

Passenger's Under-Dash Fuse/Relay Box Connector View
Passenger's Under-Dash Fuse/Relay Box Connector View
