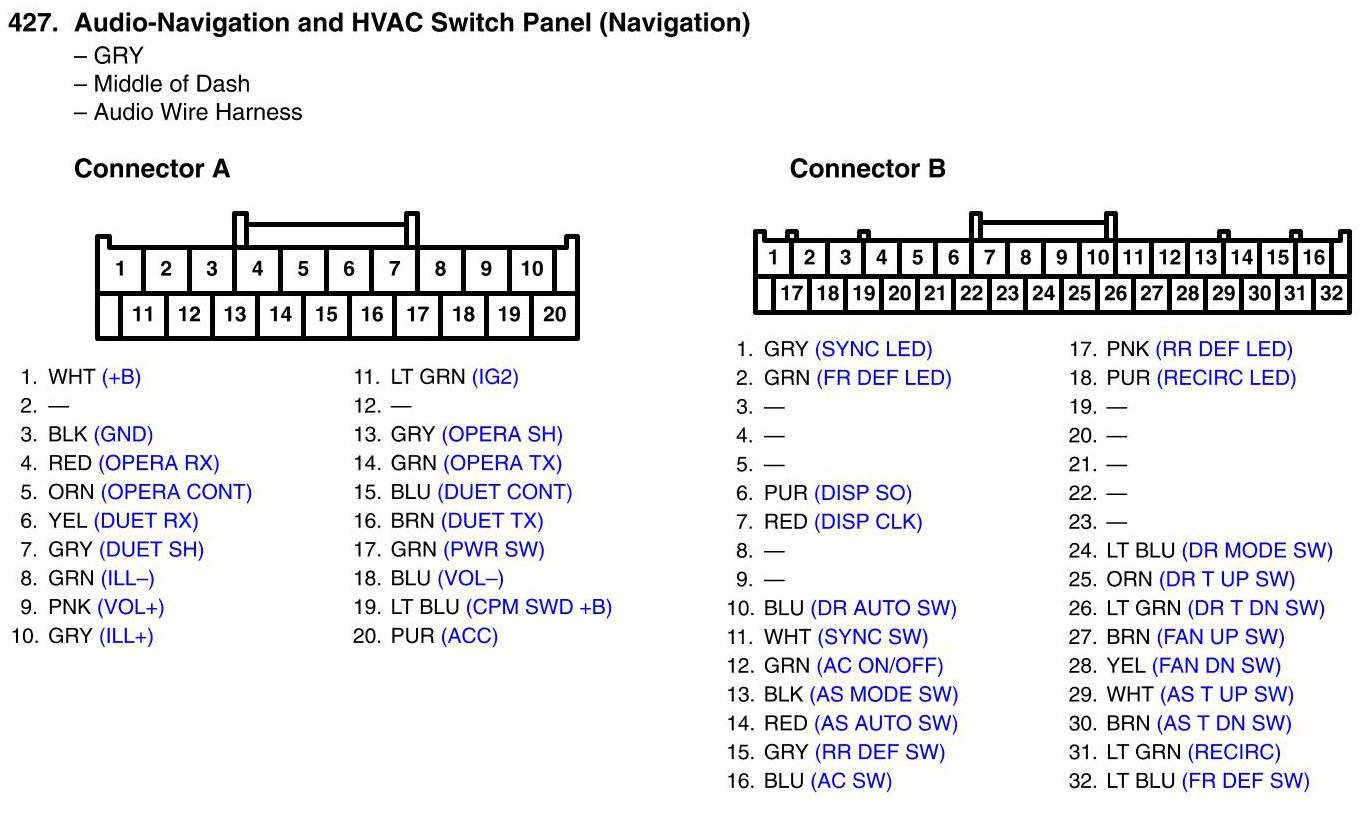

Audio-Navigation And HVAC Switch Panel Connector View (Navigation)
Audio-Navigation And HVAC Switch Panel Connector View (Navigation)
