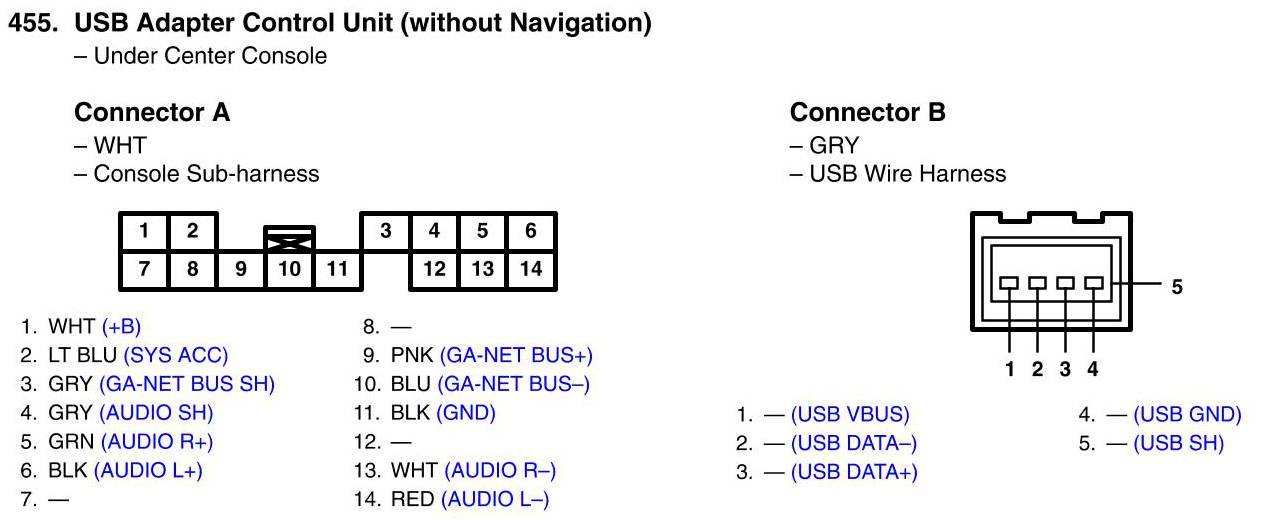

View 455 - USB Adapter Control Unit Connector View (Without Navigation)
View 455 - USB Adapter Control Unit Connector View (Without Navigation)
